UGC DOR8881406
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.50 CAD - $82.50 CAD
$82.50 CAD
$82.50 CAD - $82.50 CAD
$82.50 CAD

Vendu en lots de : 1

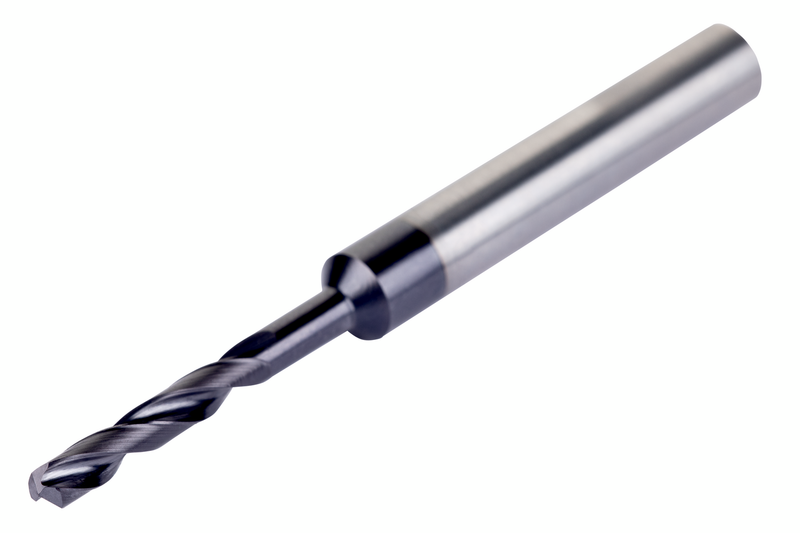

Le foret haute performance de 3,1 mm de diamètre de coupe est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour multi-matériaux). Pointe auto-centrante à 140° et 4 facettes, et géométrie d'hélice CTW. DCON MS 6 mm, LCF 20 mm et OAL 62 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS4033.1
GradeTiAlN/Top
Product Number8881406
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.122"
Cutting Diameter — mm (DC)3.1 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7874"
Flute Length — mm (LCF)20.0 mm
Length × Diameter Ratio20xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881406
EAN3603607335406
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Usage possible
File Type Download
RS4033.1 — 3D Model STP Download
RS4033.1 — 2D Model DXF Download
RS4033.1 — Line Drawing PDF Download
