UGC DOR8881459
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.50 CAD - $82.50 CAD
$82.50 CAD
$82.50 CAD - $82.50 CAD
$82.50 CAD

Vendu en lots de : 1

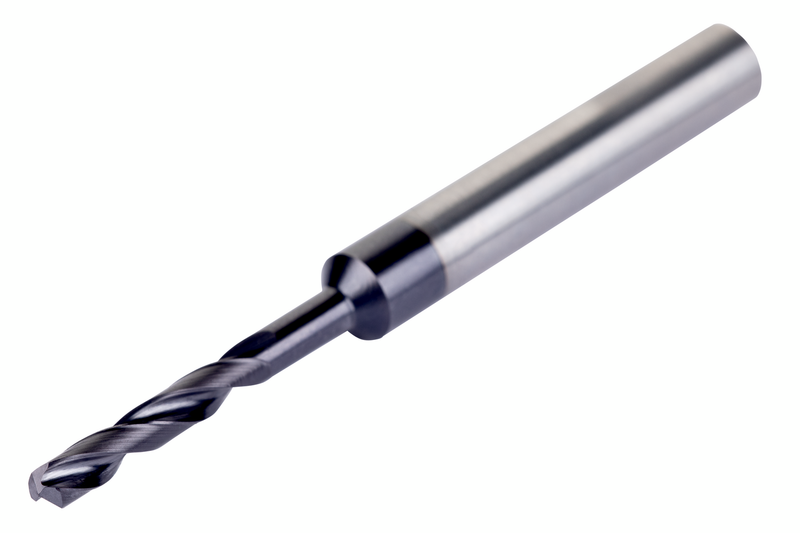

Le foret haute performance de 3,73 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 4 facettes de 140° et construction de goujure CTW. DCON MS 6 mm, LCF 24 mm et OAL 66 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS4033.73
GradeTiAlN/Sommet
Product Number8881459
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.1469"
Cutting Diameter — mm (DC)3.73 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio18 fois D
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881459
EAN3603607335536
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS4033.73 — 3D Model STP Download
RS4033.73 — 2D Model DXF Download
RS4033.73 — Line Drawing PDF Download
