UGC DOR8881649
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Vendu en lots de : 1

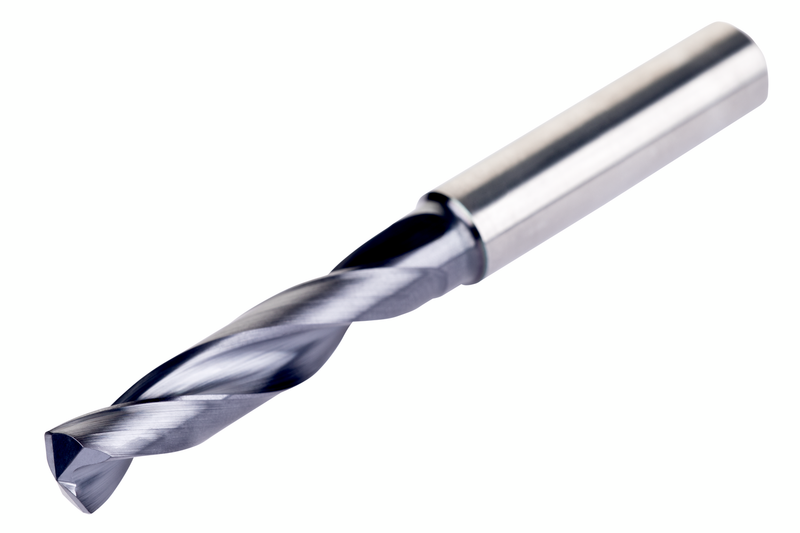

Le foret haute performance de 43/64 pouces de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 4 facettes et à 140° et construction de cannelure CTW. DCON MS 18 mm, LCF 73 mm et OAL 123 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40343/64
GradeTiAlN/Sommet
Product Number8881649
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.672"
Cutting Diameter — mm (DC)17.07 mm
Cutting Diameter — Fractional43/64
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Flute Length — in (LCF)2.874"
Flute Length — mm (LCF)73.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881649
EAN3603607337431
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40343/64 — 3D Model STP Download
RS40343/64 — 2D Model DXF Download
RS40343/64 — Line Drawing PDF Download
