RS40347/64
RS40347/64
RS40347/64
RS40347/64

RS40347/64

UGC DOR8881657
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$524.07 CAD - $524.07 CAD
$524.07 CAD
$524.07 CAD - $524.07 CAD
$524.07 CAD

Vendu en lots de : 1

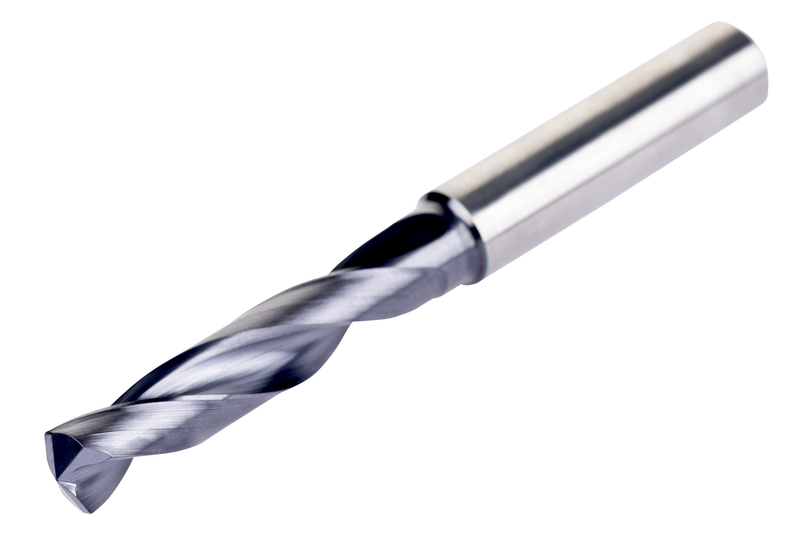

Ce foret haute performance de 47/64 pouces de diamètre est spécialement conçu pour fournir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 4 facettes de 140° et construction de goujures CTW. DCON MS 20 mm, LCF 79 mm et OAL 131 mm. Le revêtement TiAlN-top augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40347/64
GradeTiAlN/Sommet
Product Number8881657
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.7343"
Cutting Diameter — mm (DC)18.65 mm
Cutting Diameter — Fractional47/64
Overall Length — in (OAL)5.1575"
Overall Length — mm (OAL)131.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881657
EAN3603607337516
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40347/64 — 3D Model STP Download
RS40347/64 — 2D Model DXF Download
RS40347/64 — Line Drawing PDF Download
