RS4039.4
RS4039.4
RS4039.4
RS4039.4

RS4039.4

UGC DOR8881577
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$128.07 CAD - $128.07 CAD
$128.07 CAD
$128.07 CAD - $128.07 CAD
$128.07 CAD

Vendu en lots de : 1

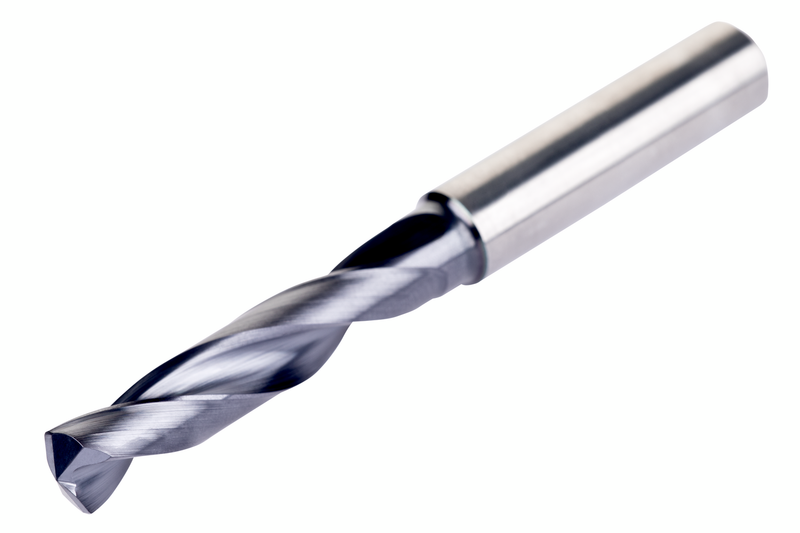

Le foret haute performance de 9,4 mm de diamètre de coupe est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 140°, 4 facettes fendues et une construction de goujure CTW. DCON MS 10 mm, LCF 47 mm et OAL 89 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS4039.4
GradeTiAlN/Sommet
Product Number8881577
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.3701"
Cutting Diameter — mm (DC)9.4 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio9xD
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881577
EAN3603607336717
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS4039.4 — 3D Model STP Download
RS4039.4 — 2D Model DXF Download
RS4039.4 — Line Drawing PDF Download
