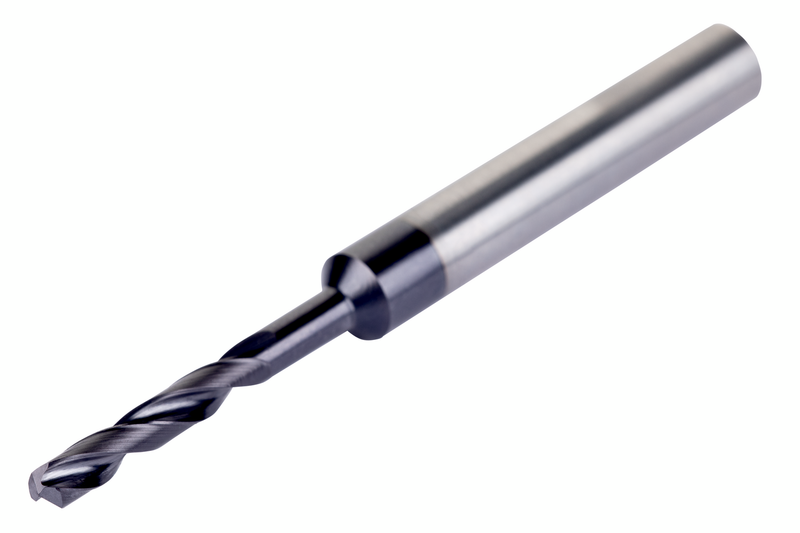

RS403N10
RS403N10
RS403N10
RS403N10

RS403N10

UGC DOR8881491
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.14 CAD - $91.14 CAD
$91.14 CAD
$91.14 CAD - $91.14 CAD
$91.14 CAD

Vendu en lots de : 1

La perceuse haute performance de diamètre de coupe N10 (0,1937 pouces) est spécifiquement conçue pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour multi-matériaux). Pointe auto-centrante à 140°, à 4 facettes et construction de goujure CTW. DCON MS 6 mm, LCF 28 mm et OAL 66 mm. Le revêtement supérieur en TiAlN augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS403N10
GradeTiAlN/Sommet
Product Number8881491
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.1937"
Cutting Diameter — mm (DC)4.92 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)1.1024"
Flute Length — mm (LCF)28.0 mm
Length × Diameter Ratio13xD
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881491
EAN3603607335857
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS403N10 — 3D Model STP Download
RS403N10 — 2D Model DXF Download
RS403N10 — Line Drawing PDF Download
