UGC DOR8881475
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.14 CAD - $91.14 CAD
$91.14 CAD
$91.14 CAD - $91.14 CAD
$91.14 CAD

Vendu en lots de : 1

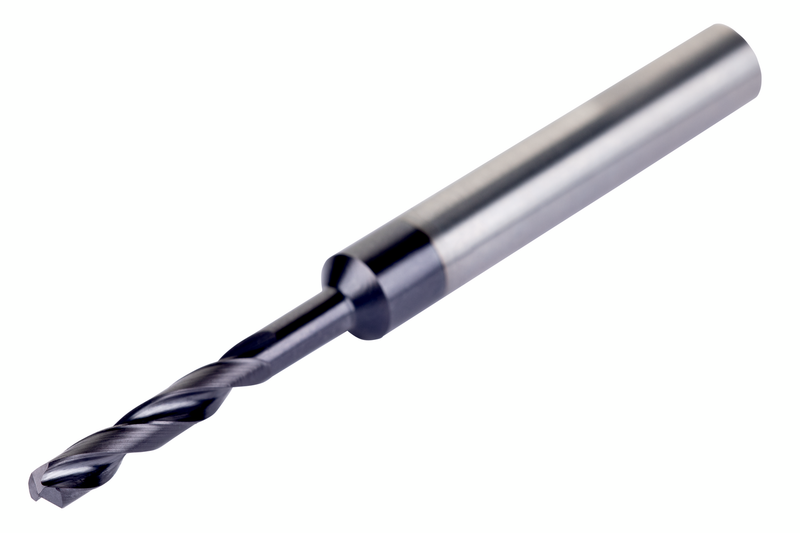

Le foret haute performance de diamètre de coupe N18 (0,1697 pouce) est spécialement conçu pour fournir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante de 140°, à 4 facettes et à pointe fendue, et une construction de goujure CTW. DCON MS 6 mm, LCF 24 mm et OAL 66 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS403N18
GradeTiAlN/Top
Product Number8881475
Product FamilyRS403
Dimensions
Cutting Diameter — in (DC)0.1697"
Cutting Diameter — mm (DC)4.31 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.9449"
Flute Length — mm (LCF)24.0 mm
Length × Diameter Ratio15xJ
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881475
EAN3603607335697
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS403N18 — 3D Model STP Download
RS403N18 — 2D Model DXF Download
RS403N18 — Line Drawing PDF Download
