RS4051/2
RS4051/2
RS4051/2
RS4051/2

RS4051/2

UGC DOR8882043
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$271.07 CAD - $271.07 CAD
$271.07 CAD
$271.07 CAD - $271.07 CAD
$271.07 CAD

Vendu en lots de : 1

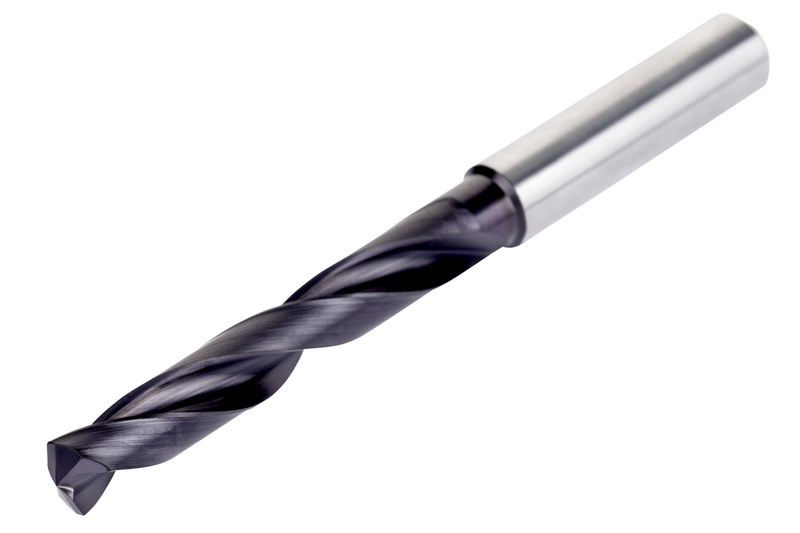

Ce foret haute performance de 1/2 pouce de diamètre de coupe est spécialement conçu pour fournir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Il est doté d'une pointe auto-centrante à 140°, d'une pointe fendue à 4 facettes et d'une construction de goujures CTW. DCON MS 14 mm, LCF 76 mm et OAL 124 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS4051/2
GradeTiAlN/Sommet
Product Number8882043
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.9921"
Flute Length — mm (LCF)76.0 mm
Length × Diameter Ratio10 fois
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882043
EAN3603607341377
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS4051/2 — 3D Model STP Download
RS4051/2 — 2D Model DXF Download
RS4051/2 — Line Drawing PDF Download
