UGC DOR8882017
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$154.79 CAD - $154.79 CAD
$154.79 CAD
$154.79 CAD - $154.79 CAD
$154.79 CAD

Vendu en lots de : 1

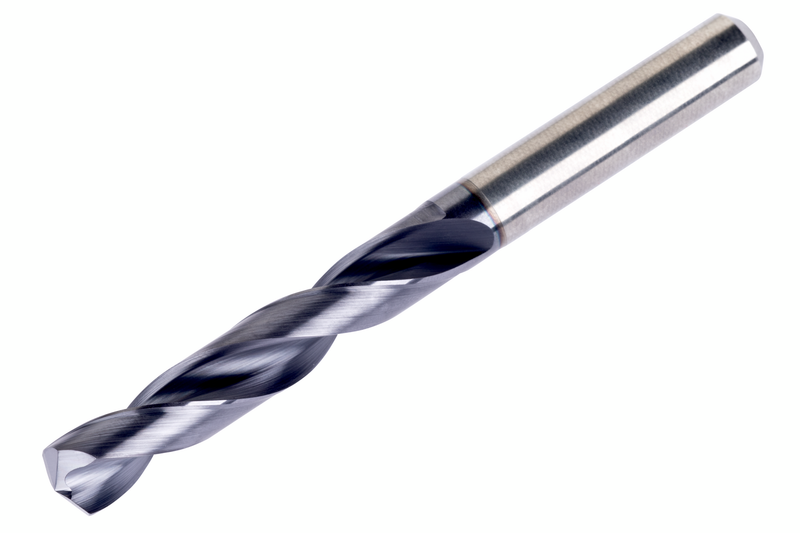

Le foret haute performance de 10 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 4 facettes et un angle de 140° et une construction de goujure CTW. Queue cylindrique avec DCON MS 10 mm, LCF 61 mm et OAL 103 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40510.0
GradeTiAlN/Top
Product Number8882017
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)4.0551"
Overall Length — mm (OAL)103.0 mm
Flute Length — in (LCF)2.4016"
Flute Length — mm (LCF)61.0 mm
Length × Diameter Ratio10x plus
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882017
EAN3603607341117
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40510.0 — 3D Model STP Download
RS40510.0 — 2D Model DXF Download
RS40510.0 — Line Drawing PDF Download
