RS40511.8
RS40511.8
RS40511.8
RS40511.8

RS40511.8

UGC DOR8882036
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.14 CAD - $212.14 CAD
$212.14 CAD
$212.14 CAD - $212.14 CAD
$212.14 CAD

Vendu en lots de : 1

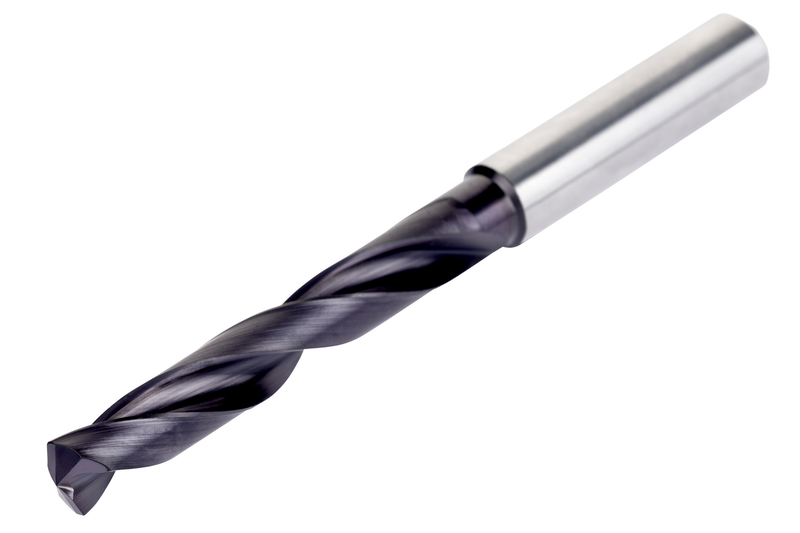

Ce foret haute performance de 11,8 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Il est doté d'une pointe auto-centrante à 140° et à 4 facettes et d'une construction à goujures CTW. DCON MS 12 mm, LCF 70 mm et OAL 118 mm. Le revêtement supérieur en TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40511.8
GradeTiAlN/Sommet
Product Number8882036
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.4646"
Cutting Diameter — mm (DC)11.8 mm
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio10x
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882036
EAN3603607341308
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40511.8 — 3D Model STP Download
RS40511.8 — 2D Model DXF Download
RS40511.8 — Line Drawing PDF Download
