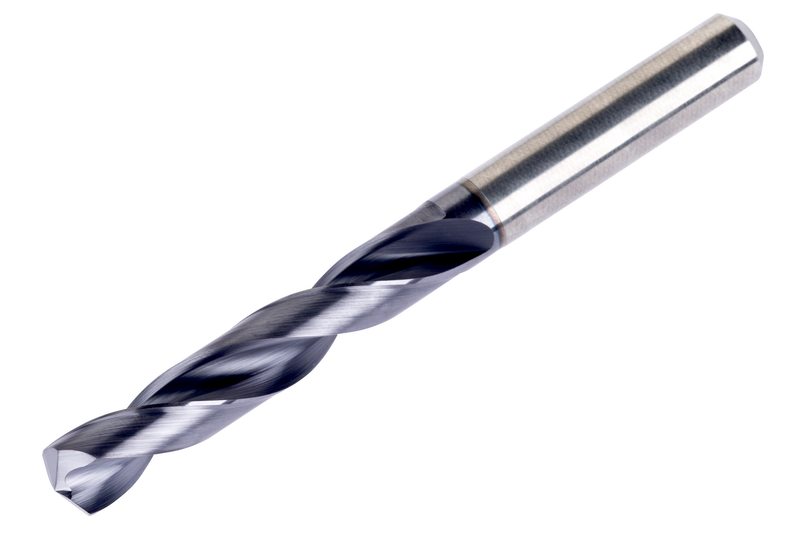

RS40512.0
RS40512.0
RS40512.0
RS40512.0

RS40512.0

UGC DOR8882038
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.14 CAD - $212.14 CAD
$212.14 CAD
$212.14 CAD - $212.14 CAD
$212.14 CAD

Vendu en lots de : 1

Ce foret haute performance de 12 mm de diamètre est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multimatériaux). Il est doté d'une pointe auto-centrante à 4 facettes de 140° et d'une construction de goujure CTW. Queue parallèle avec DCON MS de 12 mm, LCF de 70 mm et OAL de 118 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40512.0
GradeTiAlN/Sommet
Product Number8882038
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio10x
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882038
EAN3603607341322
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40512.0 — 3D Model STP Download
RS40512.0 — 2D Model DXF Download
RS40512.0 — Line Drawing PDF Download
