RS40515/32
RS40515/32
RS40515/32
RS40515/32

RS40515/32

UGC DOR8882037
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.14 CAD - $212.14 CAD
$212.14 CAD
$212.14 CAD - $212.14 CAD
$212.14 CAD

Vendu en lots de : 1

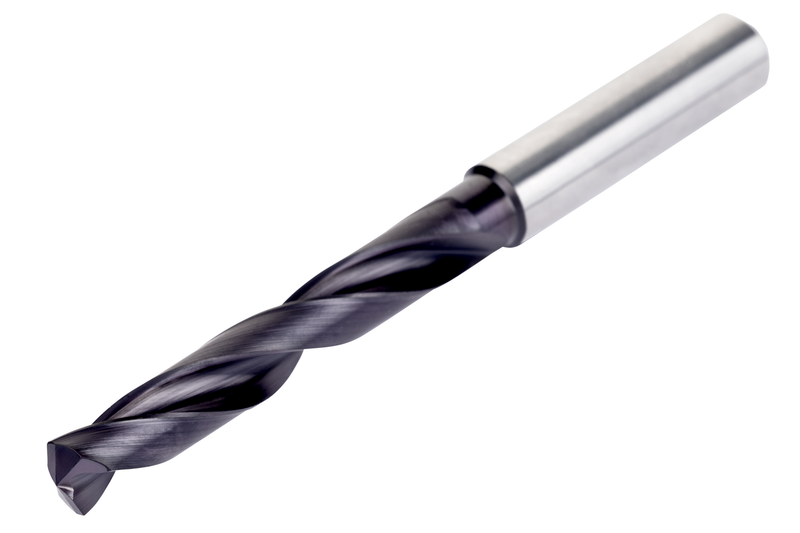

Le foret haute performance de 15/32 de pouce de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe en croix auto-centrante à 4 facettes de 140° et construction de goujure CTW. DCON MS 12 mm, LCF 70 mm et OAL 118 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40515/32
GradeTiAlN/Sommet
Product Number8882037
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.4688"
Cutting Diameter — mm (DC)11.91 mm
Cutting Diameter — Fractional15/32
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio10 fois
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882037
EAN3603607341315
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40515/32 — 3D Model STP Download
RS40515/32 — 2D Model DXF Download
RS40515/32 — Line Drawing PDF Download
