UGC DOR8882073
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$513.86 CAD - $513.86 CAD
$513.86 CAD
$513.86 CAD - $513.86 CAD
$513.86 CAD

Vendu en lots de : 1

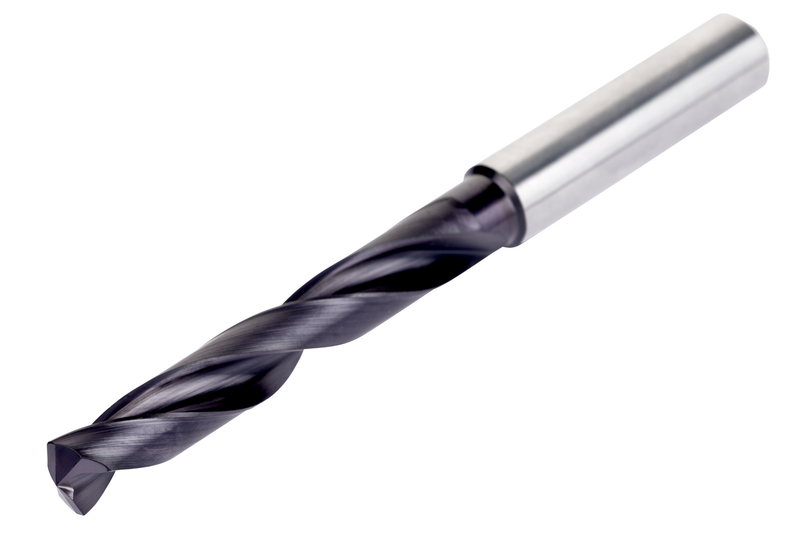

Le foret haute performance de 17,8 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Une pointe auto-centrante à 140° à 4 facettes et une construction de goujures CTW. DCON MS 18 mm, LCF 91 mm et OAL 143 mm. Le revêtement TiAlN-top augmente la dureté de la surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40517.8
GradeTiAlN/Top
Product Number8882073
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.7008"
Cutting Diameter — mm (DC)17.8 mm
Overall Length — in (OAL)5.6299"
Overall Length — mm (OAL)143.0 mm
Flute Length — in (LCF)3.5827"
Flute Length — mm (LCF)91.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882073
EAN3603607341674
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40517.8 — 3D Model STP Download
RS40517.8 — 2D Model DXF Download
RS40517.8 — Line Drawing PDF Download
