RS40518.0
RS40518.0
RS40518.0
RS40518.0

RS40518.0

UGC DOR8882075
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$513.86 CAD - $513.86 CAD
$513.86 CAD
$513.86 CAD - $513.86 CAD
$513.86 CAD

Vendu en lots de : 1

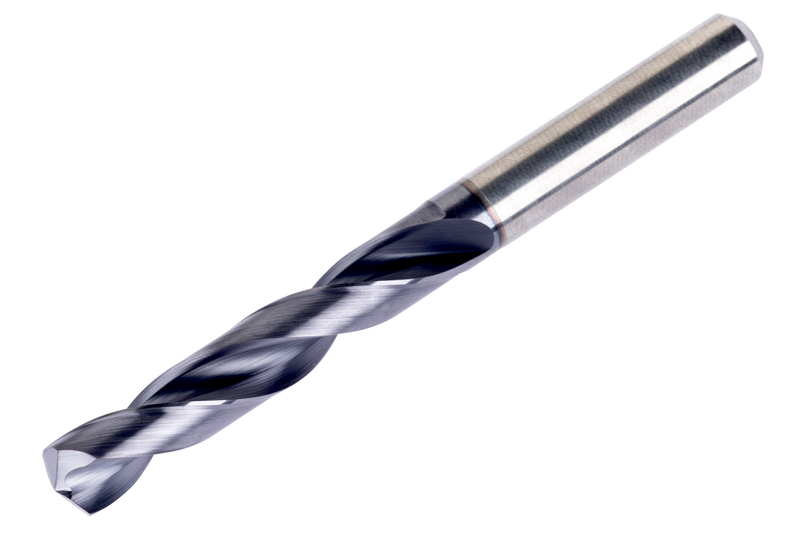

La perceuse haute performance de 18 mm de diamètre de coupe est spécialement conçue pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multimatériaux). Une pointe auto-centrante à 4 facettes à 140° et une construction de goujure CTW. Queue cylindrique avec DCON MS 18 mm, LCF 91 mm et OAL 143 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40518.0
GradeTiAlN/Sommet
Product Number8882075
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)5.6299"
Overall Length — mm (OAL)143.0 mm
Flute Length — in (LCF)3.5827"
Flute Length — mm (LCF)91.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882075
EAN3603607341698
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40518.0 — 3D Model STP Download
RS40518.0 — 2D Model DXF Download
RS40518.0 — Line Drawing PDF Download
