RS40519/32
RS40519/32
RS40519/32
RS40519/32

RS40519/32

UGC DOR8882059
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$387.36 CAD - $387.36 CAD
$387.36 CAD
$387.36 CAD - $387.36 CAD
$387.36 CAD

Vendu en lots de : 1

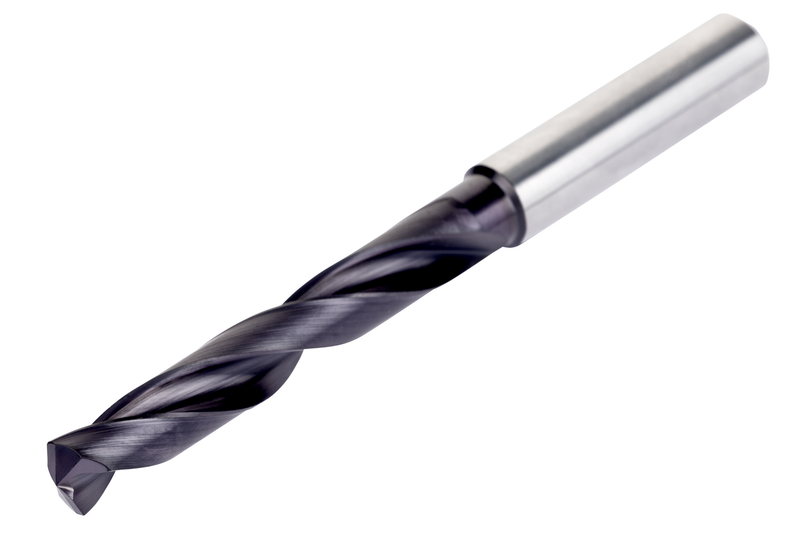

Ce foret haute performance de 19/32 po de diamètre est spécialement conçu pour fournir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour multi-matériaux). Il est doté d'une pointe auto-centrante à 4 facettes et d'un angle de 140°, ainsi que d'une construction de goujures CTW. DCON MS 16 mm, LCF 82 mm et OAL 133 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40519/32
GradeTiAlN/Sommet
Product Number8882059
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.5938"
Cutting Diameter — mm (DC)15.08 mm
Cutting Diameter — Fractional19/32
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio9xR
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882059
EAN3603607341537
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40519/32 — 3D Model STP Download
RS40519/32 — 2D Model DXF Download
RS40519/32 — Line Drawing PDF Download
