RS40519/64
RS40519/64
RS40519/64
RS40519/64

RS40519/64

UGC DOR8881978
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$128.07 CAD - $128.07 CAD
$128.07 CAD
$128.07 CAD - $128.07 CAD
$128.07 CAD

Vendu en lots de : 1

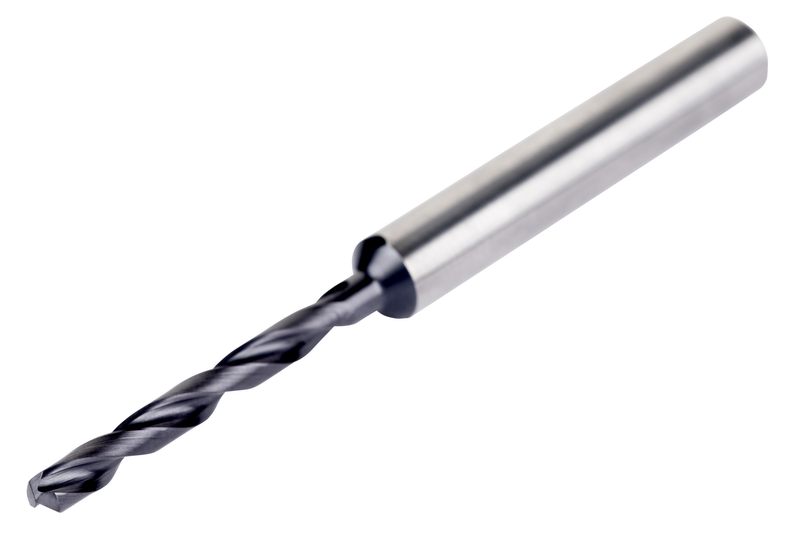

Le foret haute performance de 19/64 pouces de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multi-matériaux). Pointe auto-centrante à 4 facettes fendue à 140° et construction de goujure CTW. DCON MS 8 mm, LCF 53 mm et OAL 91 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40519/64
GradeTiAlN/Top
Product Number8881978
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.2969"
Cutting Diameter — mm (DC)7.54 mm
Cutting Diameter — Fractional19/64
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio12xD
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881978
EAN3603607340721
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40519/64 — 3D Model STP Download
RS40519/64 — 2D Model DXF Download
RS40519/64 — Line Drawing PDF Download
