UGC DOR8882004
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$154.79 CAD - $154.79 CAD
$154.79 CAD
$154.79 CAD - $154.79 CAD
$154.79 CAD

Vendu en lots de : 1

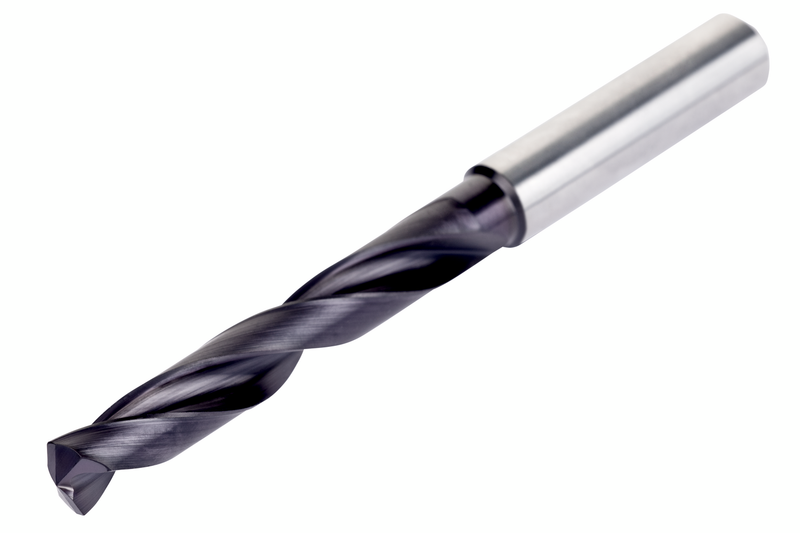

Le foret haute performance d'un diamètre de coupe de 23/64 pouces est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multimatériaux). Une pointe à centrage automatique à 140°, à 4 facettes et à auto-centrage, et une construction de goujure CTW. DCON MS 10 mm, LCF 61 mm et OAL 103 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40523/64
GradeTiAlN/Sommet
Product Number8882004
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)4.0551"
Overall Length — mm (OAL)103.0 mm
Flute Length — in (LCF)2.4016"
Flute Length — mm (LCF)61.0 mm
Length × Diameter Ratio11 fois D
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882004
EAN3603607340981
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Usage possible
File Type Download
RS40523/64 — 3D Model STP Download
RS40523/64 — 2D Model DXF Download
RS40523/64 — Line Drawing PDF Download
