RS40537/64
RS40537/64
RS40537/64
RS40537/64

RS40537/64

UGC DOR8882056
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$387.36 CAD - $387.36 CAD
$387.36 CAD
$387.36 CAD - $387.36 CAD
$387.36 CAD

Vendu en lots de : 1

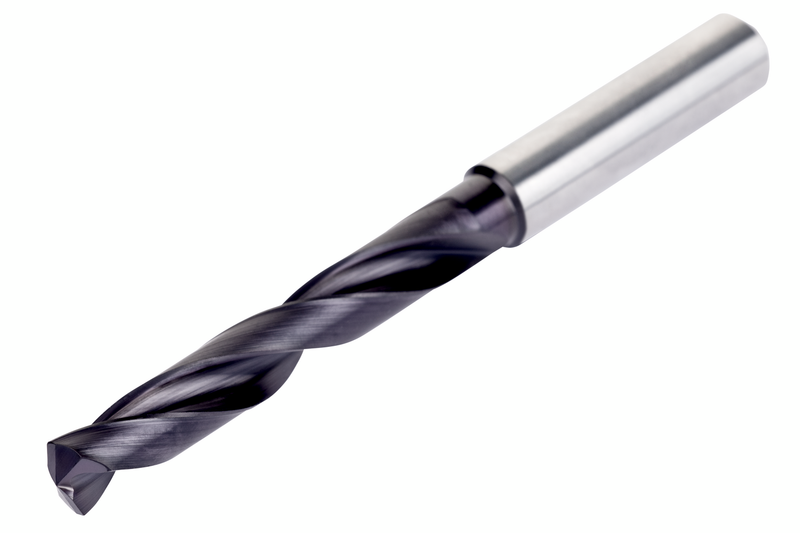

Le foret haute performance de 37/64 de pouce de diamètre de coupe est spécifiquement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multimatériaux). Une pointe autocentrante à 4 facettes et 140° et une construction de goujure CTW. DCON MS 16 mm, LCF 82 mm et OAL 133 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS40537/64
GradeTiAlN/Revêtement
Product Number8882056
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.5781"
Cutting Diameter — mm (DC)14.68 mm
Cutting Diameter — Fractional37/64
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio9xJ
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882056
EAN3603607341506
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS40537/64 — 3D Model STP Download
RS40537/64 — 2D Model DXF Download
RS40537/64 — Line Drawing PDF Download
