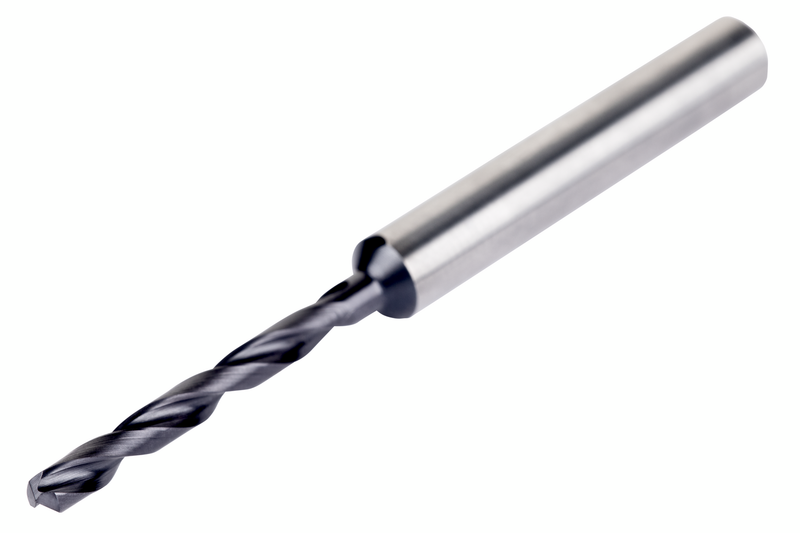

Le foret haute performance de 7,6 mm de diamètre de coupe est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les matériaux multiples). Une pointe auto-centrante à 4 facettes de 140° et une construction de goujure CTW. DCON MS 8 mm, LCF 53 mm et OAL 91 mm. Le revêtement supérieur TiAlN augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS4057.6
GradeTiAlN/Top
Product Number8881979
Product FamilyRS405

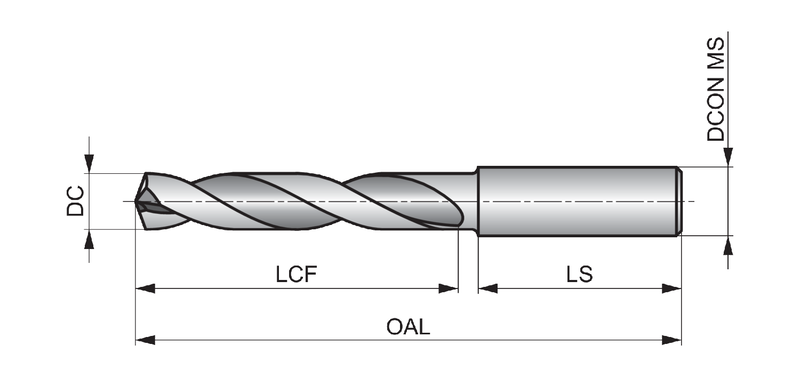

Dimensions
Cutting Diameter — in (DC)0.2992"
Cutting Diameter — mm (DC)7.6 mm
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio12xJ
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8881979
EAN3603607340738
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS4057.6 — 3D Model STP Download
RS4057.6 — 2D Model DXF Download
RS4057.6 — Line Drawing PDF Download
