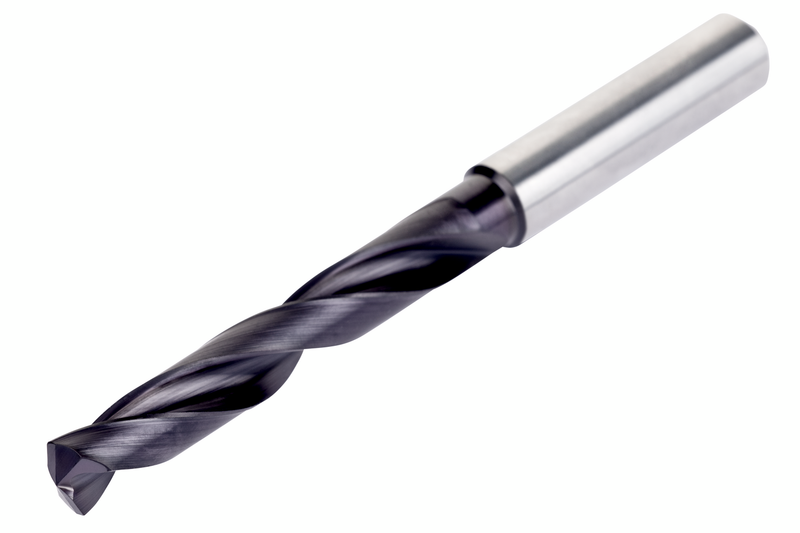

RS405U
RS405U
RS405U
RS405U

RS405U

UGC DOR8882006
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$154.79 CAD - $154.79 CAD
$154.79 CAD
$154.79 CAD - $154.79 CAD
$154.79 CAD

Vendu en lots de : 1

Le foret haute performance de diamètre de coupe U (0,3681 pouce) est spécialement conçu pour offrir une qualité de trou supérieure à des vitesses et des avances élevées (tolérance de trou H9 pour les multimatériaux). Une pointe auto-centrante de 140° à 4 facettes et une construction de goujure CTW. DCON MS 10 mm, LCF 61 mm et OAL 103 mm. Le revêtement TiAlN-top augmente la dureté de surface, améliore la résistance à l'usure et prolonge la durée de vie de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RS405U
GradeTiAlN/Sommet
Product Number8882006
Product FamilyRS405
Dimensions
Cutting Diameter — in (DC)0.3681"
Cutting Diameter — mm (DC)9.35 mm
Overall Length — in (OAL)4.0551"
Overall Length — mm (OAL)103.0 mm
Flute Length — in (LCF)2.4016"
Flute Length — mm (LCF)61.0 mm
Length × Diameter Ratio11xM
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Through Coolant No
StandardDIN 6537
Reference Numbers
EDP Number8882006
EAN3603607341001
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
RS405U — 3D Model STP Download
RS405U — 2D Model DXF Download
RS405U — Line Drawing PDF Download
