UGC DOR8961998
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$337.23 CAD - $337.23 CAD
$337.23 CAD
$337.23 CAD - $337.23 CAD
$337.23 CAD

Vendu en lots de : 1

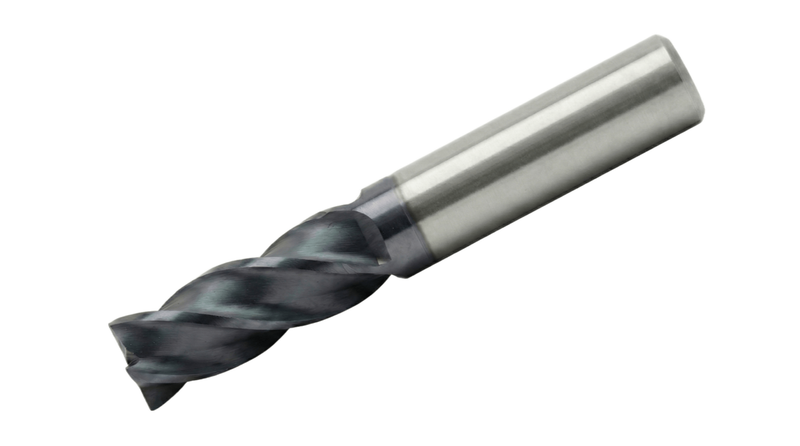

Outil rond avec diamètre de coupe 25,4 mm, chanfrein de coin 45°, profondeur de coupe maximale 38,1 mm et LHT 101,6 mm. DCON MS 25,4 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9541
GradeTiAlN
Product Number8961998
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)1.5"
Depth of Cut Max — mm (APMX)38.1 mm

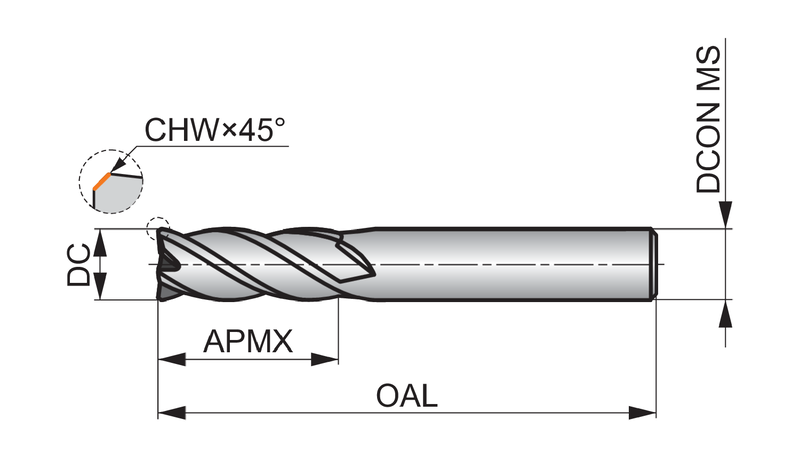

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Length × Diameter Ratio4xD
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8961998
EAN3603607423905
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9541 — 3D Model STP Download
S9541 — 2D Model DXF Download
S9541 — Line Drawing PDF Download
