S9541/16
S9541/16
S9541/16
S9541/16

S9541/16

UGC DOR8961999
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.94 CAD - $36.94 CAD
$36.94 CAD
$36.94 CAD - $36.94 CAD
$36.94 CAD

Vendu en lots de : 1

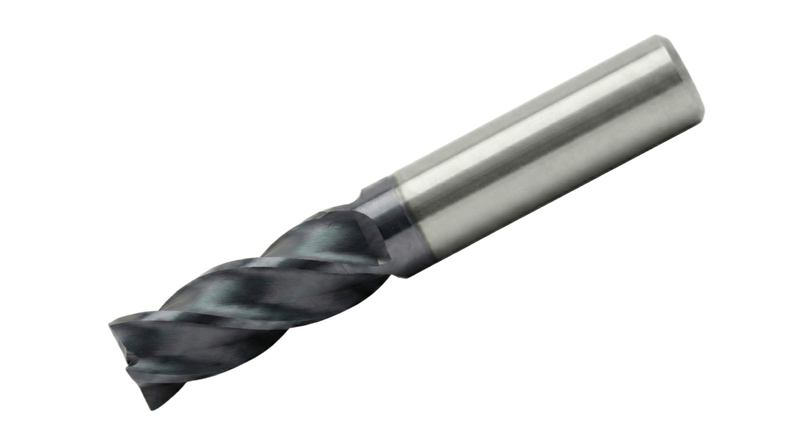

Outil rond avec diamètre de coupe de 1,59 mm, chanfrein d'angle de 45°, profondeur de coupe maximale de 6,35 mm et longueur totale de 38,1 mm. DCON MS 3,18 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté de < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9541/16
GradeTiAlN
Product Number8961999
Product FamilyS954

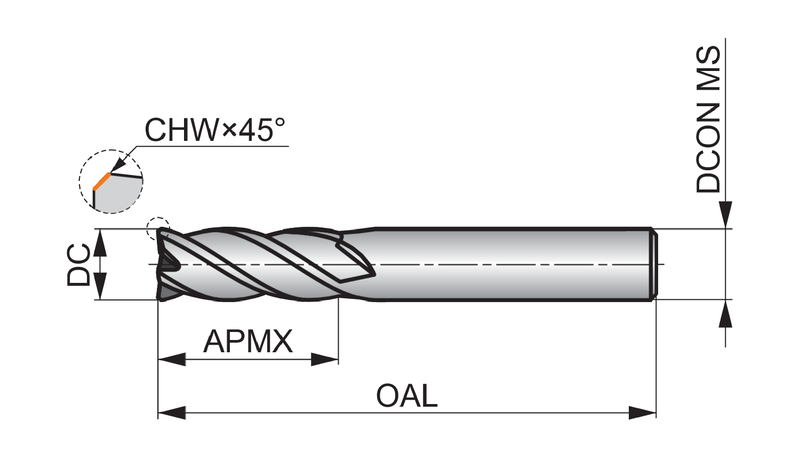

Insert Geometry
Depth of Cut Max — in (APMX)0.25"
Depth of Cut Max — mm (APMX)6.35 mm
Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Length × Diameter Ratio24D
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8961999
EAN3603607423912
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9541/16 — 3D Model STP Download
S9541/16 — 2D Model DXF Download
S9541/16 — Line Drawing PDF Download
