S9541/2
S9541/2
S9541/2
S9541/2

S9541/2

UGC DOR8962000
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.40 CAD - $118.40 CAD
$118.40 CAD
$118.40 CAD - $118.40 CAD
$118.40 CAD

Vendu en lots de : 1

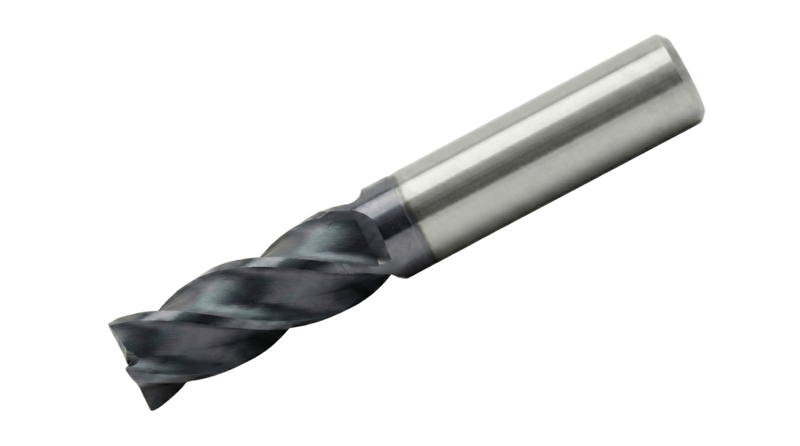

Outil rond d'un diamètre de coupe de 12,7 mm, chanfrein d'angle de 45°, profondeur de coupe maximale de 25,4 mm et longueur totale de 76,2 mm. DCON MS 12,7 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec une teneur en chrome ≥ 11%), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fontes (moulages de fer et d'alliages de carbone avec une teneur en carbone > 2%).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9541/2
GradeTiAlN
Product Number8962000
Product FamilyS954
Insert Geometry

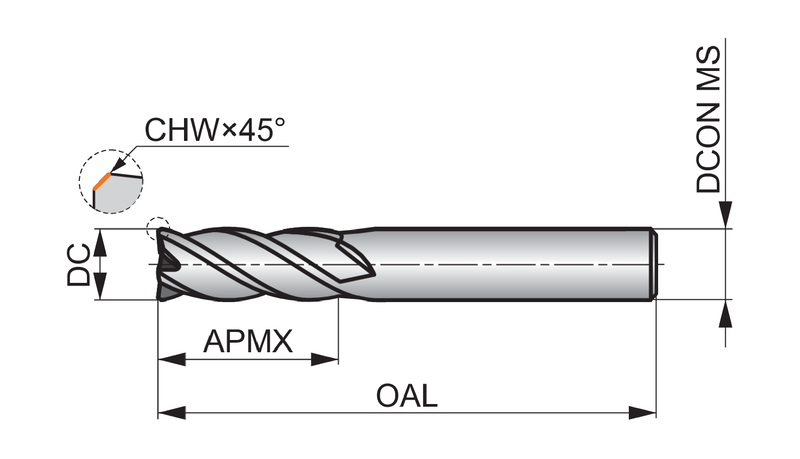

Depth of Cut Max — in (APMX)1.0"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962000
EAN3603607423929
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
File Type Download
S9541/2 — 3D Model STP Download
S9541/2 — 2D Model DXF Download
S9541/2 — Line Drawing PDF Download
