S9541/4
S9541/4
S9541/4
S9541/4

S9541/4

UGC DOR8962001
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.46 CAD - $46.46 CAD
$46.46 CAD
$46.46 CAD - $46.46 CAD
$46.46 CAD

Vendu en lots de : 1

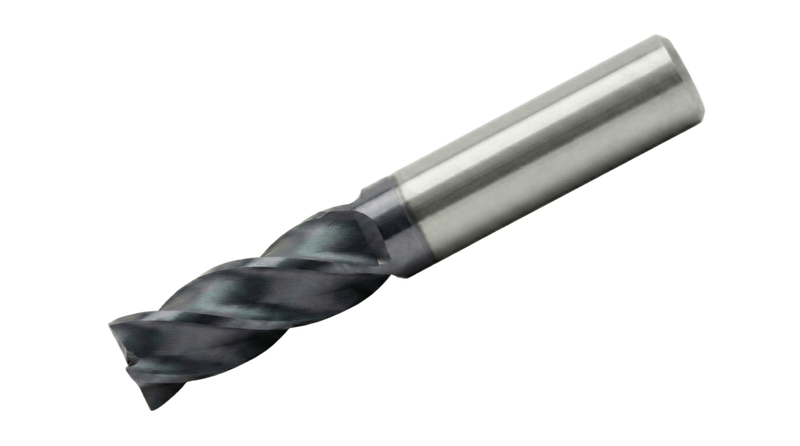

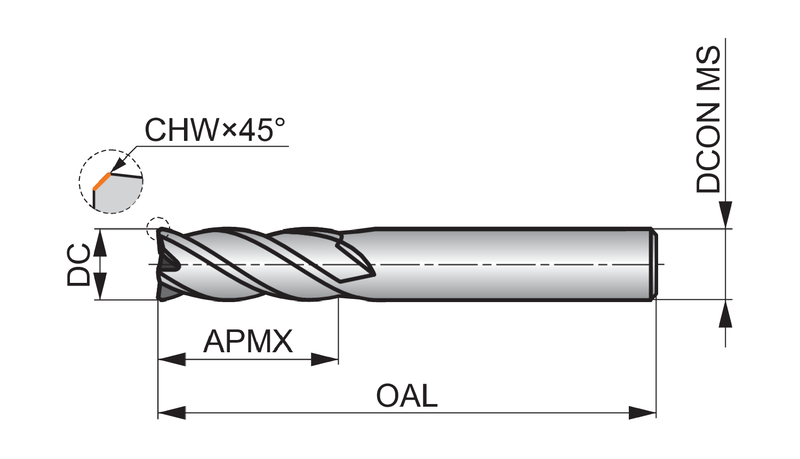

Outil rond d'un diamètre de coupe de 6,35 mm, avec un chanfrein d'angle de 45°, une profondeur de coupe maximale de 19,05 mm et une longueur totale de 63,5 mm. DCON MS 6,35 mm avec une queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers alliés avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages en fer et alliages de carbone avec une teneur en carbone > 2 %).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9541/4
GradeTiAlN
Product Number8962001
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.75"
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio10xD
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962001
EAN3603607423936
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9541/4 — 3D Model STP Download
S9541/4 — 2D Model DXF Download
S9541/4 — Line Drawing PDF Download
