S9541/8
S9541/8
S9541/8
S9541/8

S9541/8

UGC DOR8962002
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.94 CAD - $36.94 CAD
$36.94 CAD
$36.94 CAD - $36.94 CAD
$36.94 CAD

Vendu en lots de : 1

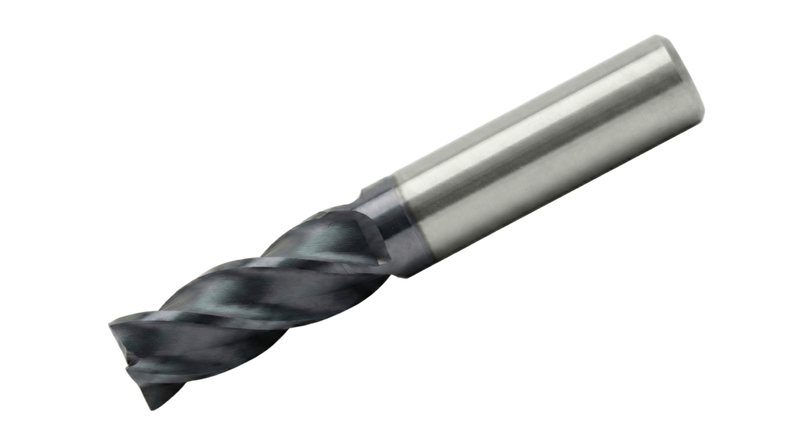

Outil rond d'un diamètre de coupe de 3,18 mm, d'un chanfrein d'angle de 45°, d'une profondeur de coupe maximale de 12,7 mm et d'une longueur totale de 38,1 mm. DCON MS de 3,18 mm avec une queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers alliés avec ≤ 10 % d'éléments d'alliage et une dureté < 45 HRC), K - Fonte (alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9541/8
GradeTiAlN
Product Number8962002
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.5"
Depth of Cut Max — mm (APMX)12.7 mm

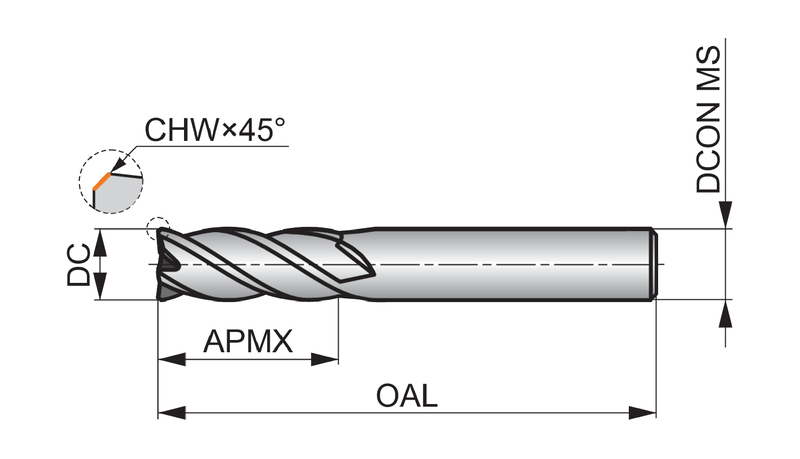

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Length × Diameter Ratio12xP
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962002
EAN3603607423943
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9541/8 — 3D Model STP Download
S9541/8 — 2D Model DXF Download
S9541/8 — Line Drawing PDF Download
