S9543/16
S9543/16
S9543/16
S9543/16

S9543/16

UGC DOR8962003
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.01 CAD - $41.01 CAD
$41.01 CAD
$41.01 CAD - $41.01 CAD
$41.01 CAD

Vendu en lots de : 1

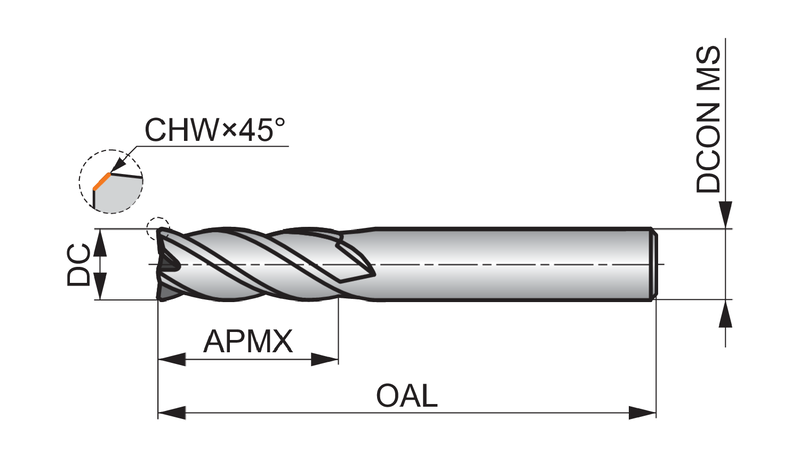

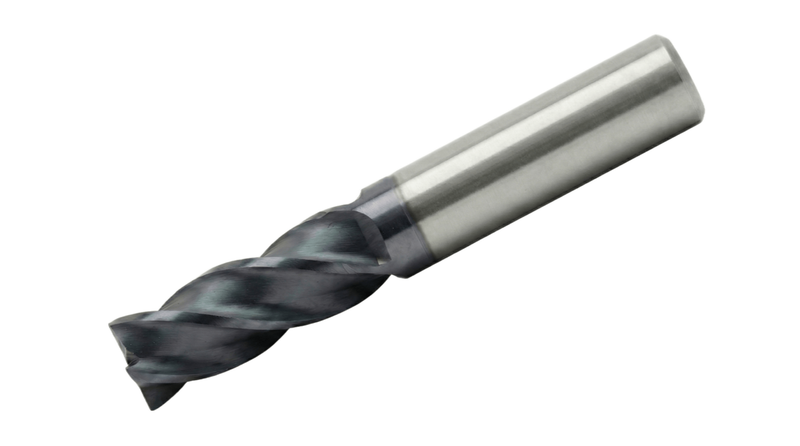

Outil rond avec diamètre de coupe 4,76 mm, chanfrein d'angle 45°, profondeur de coupe maximale 15,875 mm et longueur totale 50,8 mm. DCON MS 4,76 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10 % et une dureté de < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9543/16
GradeTiAlN
Product Number8962003
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.625"
Depth of Cut Max — mm (APMX)15.875 mm
Dimensions
Cutting Diameter — in (DC)0.188"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio11xD
Connection Dia. — in (DCON)0.188"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962003
EAN3603607423950
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9543/16 — 3D Model STP Download
S9543/16 — 2D Model DXF Download
S9543/16 — Line Drawing PDF Download
