UGC DOR8962004
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.96 CAD - $38.96 CAD
$38.96 CAD
$38.96 CAD - $38.96 CAD
$38.96 CAD

Vendu en lots de : 1

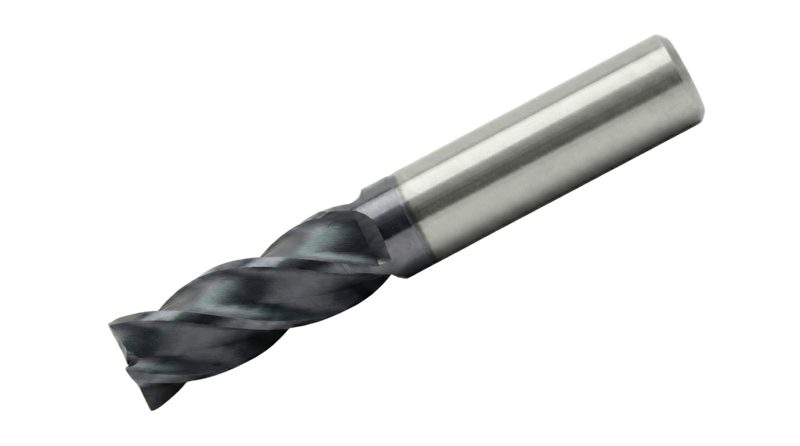

Outil rond avec diamètre de coupe de 2,38 mm, chanfrein d'angle de 45°, profondeur de coupe maximale de 9,525 mm et longueur totale de 38,1 mm. DCON MS 3,18 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec une teneur en chrome ≥ 11%), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fontes (pièces moulées en alliages de fer et de carbone avec une teneur en carbone > 2%).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9543/32
GradeTiAlN
Product Number8962004
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.375"
Depth of Cut Max — mm (APMX)9.525 mm

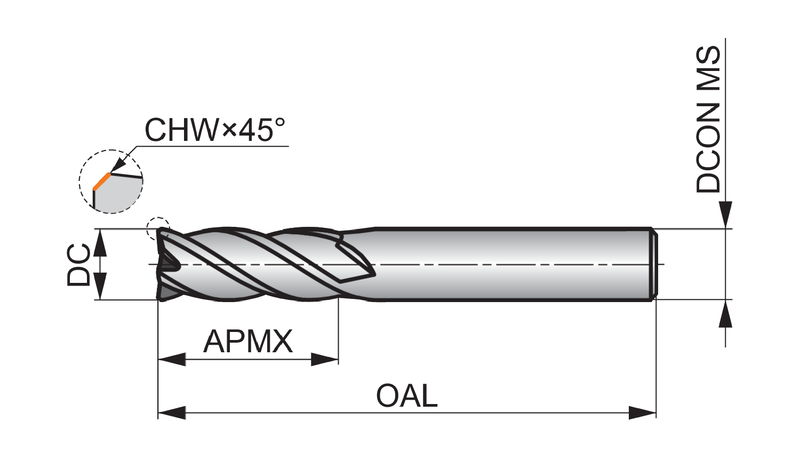

Dimensions
Cutting Diameter — in (DC)0.094"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Length × Diameter Ratio16XJ
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962004
EAN3603607423967
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9543/32 — 3D Model STP Download
S9543/32 — 2D Model DXF Download
S9543/32 — Line Drawing PDF Download
