S9545/16
S9545/16
S9545/16
S9545/16

S9545/16

UGC DOR8962007
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.54 CAD - $65.54 CAD
$65.54 CAD
$65.54 CAD - $65.54 CAD
$65.54 CAD

Vendu en lots de : 1

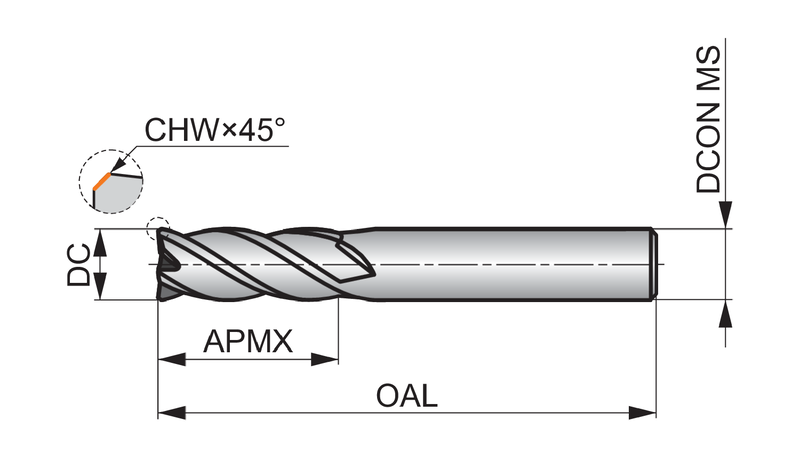

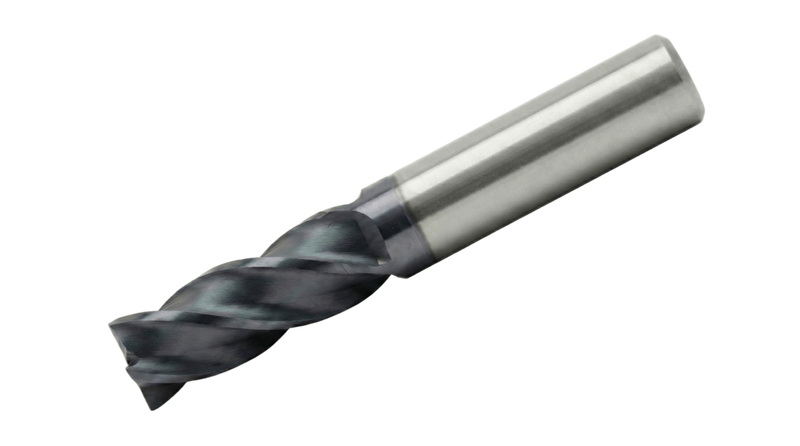

Outil rond avec diamètre de coupe de 7,94 mm, chanfrein d'angle à 45°, profondeur de coupe maximale de 22,225 mm et longueur totale de 63,5 mm. DCON MS 7,94 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11% de chrome), P - Aciers et aciers moulés (aciers avec teneur en alliage ≤ 10% et une dureté de < 45HRC), K - Fontes (alliages de fer et de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9545/16
GradeTiAlN
Product Number8962007
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.875"
Depth of Cut Max — mm (APMX)22.225 mm
Dimensions
Cutting Diameter — in (DC)0.313"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.313"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962007
EAN3603607423998
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9545/16 — 3D Model STP Download
S9545/16 — 2D Model DXF Download
S9545/16 — Line Drawing PDF Download
