S9545/32
S9545/32
S9545/32
S9545/32

S9545/32

UGC DOR8962008
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.23 CAD - $40.23 CAD
$40.23 CAD
$40.23 CAD - $40.23 CAD
$40.23 CAD

Vendu en lots de : 1

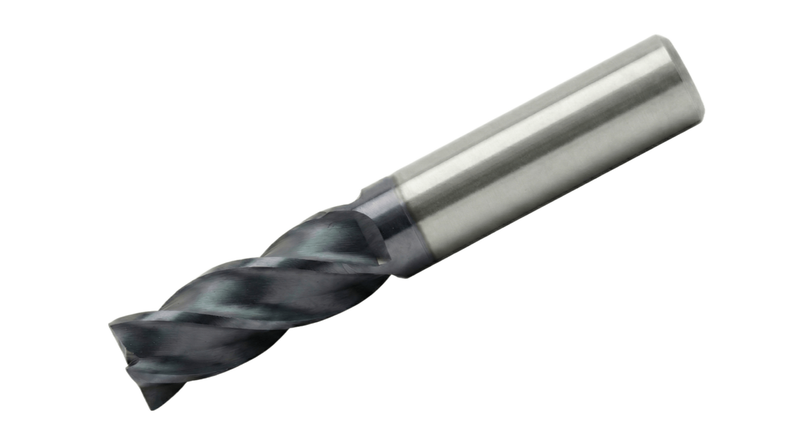

Outil rond d'un diamètre de coupe de 3,97 mm, chanfrein d'angle de 45°, profondeur de coupe maximale de 14,288 mm et longueur totale de 50,8 mm. DCON MS de 4,76 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté de < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9545/32
GradeTiAlN
Product Number8962008
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.563"
Depth of Cut Max — mm (APMX)14.288 mm

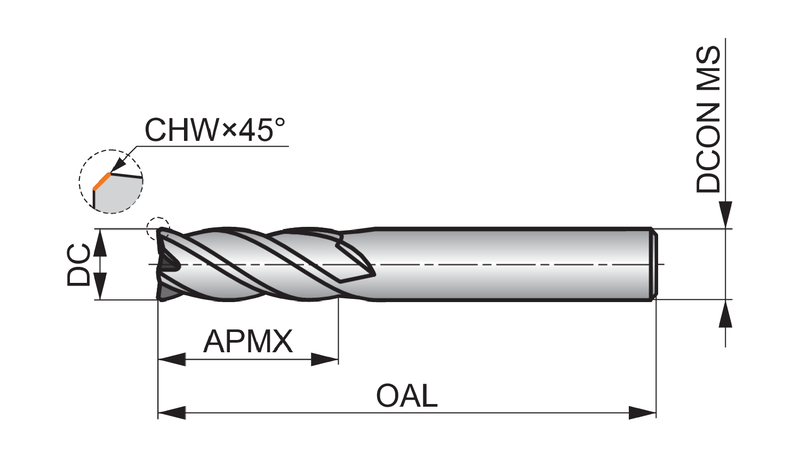

Dimensions
Cutting Diameter — in (DC)0.156"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio13xJ
Connection Dia. — in (DCON)0.188"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962008
EAN3603607424001
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9545/32 — 3D Model STP Download
S9545/32 — 2D Model DXF Download
S9545/32 — Line Drawing PDF Download
