UGC DOR8962009
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$194.51 CAD - $194.51 CAD
$194.51 CAD
$194.51 CAD - $194.51 CAD
$194.51 CAD

Vendu en lots de : 1

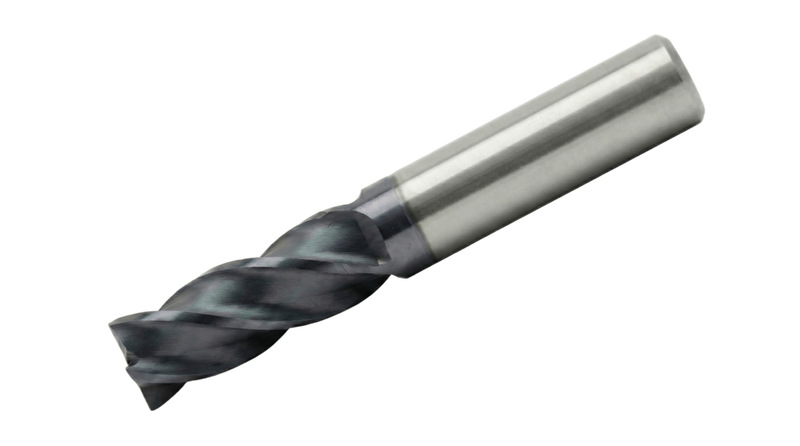

Outil rond avec diamètre de coupe 15,88 mm, chanfrein d'angle 45°, profondeur de coupe maximale 31,75 mm et longueur totale 88,9 mm. Diamètre de raccordement d'outil 15,88 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10 % et une dureté de < 45HRC), K - Fonte (moulages en alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9545/8
GradeTiAlN
Product Number8962009
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)1.25"
Depth of Cut Max — mm (APMX)31.75 mm

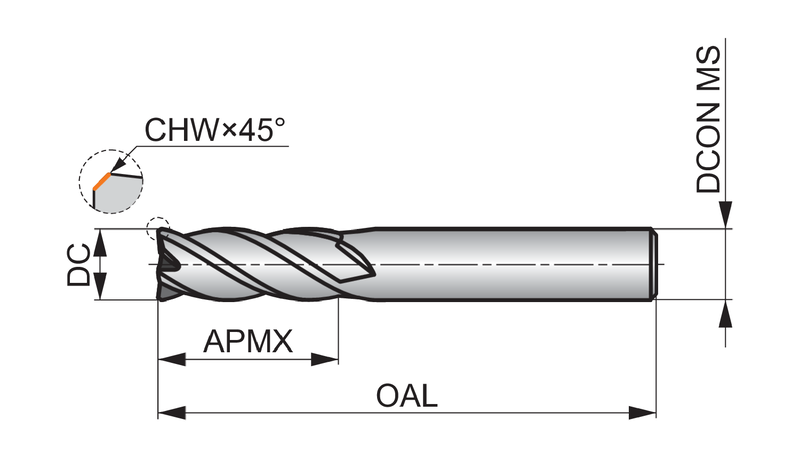

Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962009
EAN3603607424018
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9545/8 — 3D Model STP Download
S9545/8 — 2D Model DXF Download
S9545/8 — Line Drawing PDF Download
