UGC DOR8962010
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.40 CAD - $118.40 CAD
$118.40 CAD
$118.40 CAD - $118.40 CAD
$118.40 CAD

Vendu en lots de : 1

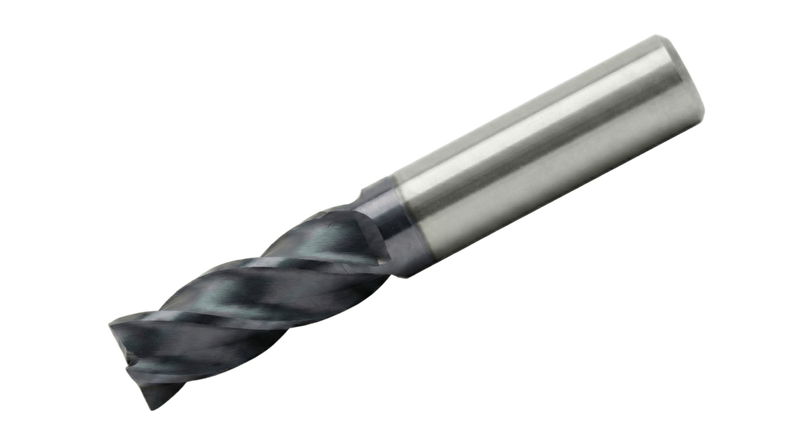

Outil rond avec un diamètre de coupe de 11,11 mm, un chanfrein d'angle de 45°, une profondeur de coupe maximale de 25,4 mm et une longueur totale de 63,5 mm. DCON MS 11,11 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9547/16
GradeTiAlN
Product Number8962010
Product FamilyS954

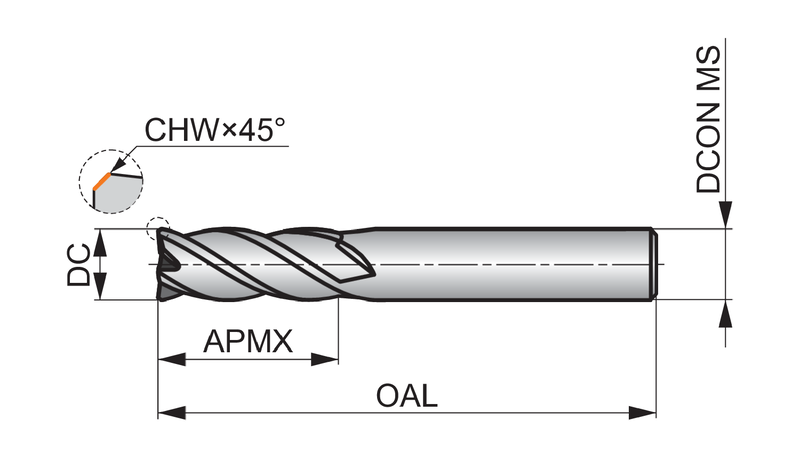

Insert Geometry
Depth of Cut Max — in (APMX)1.0"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.438"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.438"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962010
EAN3603607424025
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9547/16 — 3D Model STP Download
S9547/16 — 2D Model DXF Download
S9547/16 — Line Drawing PDF Download
