S9547/32
S9547/32
S9547/32
S9547/32

S9547/32

UGC DOR8962011
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.46 CAD - $46.46 CAD
$46.46 CAD
$46.46 CAD - $46.46 CAD
$46.46 CAD

Vendu en lots de : 1

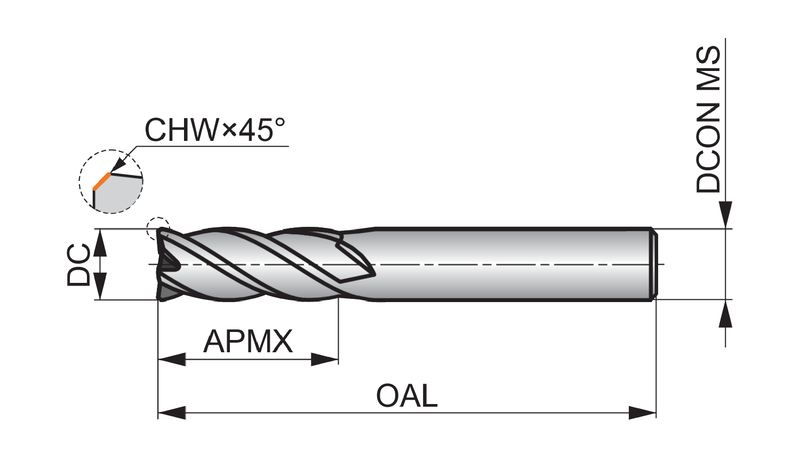

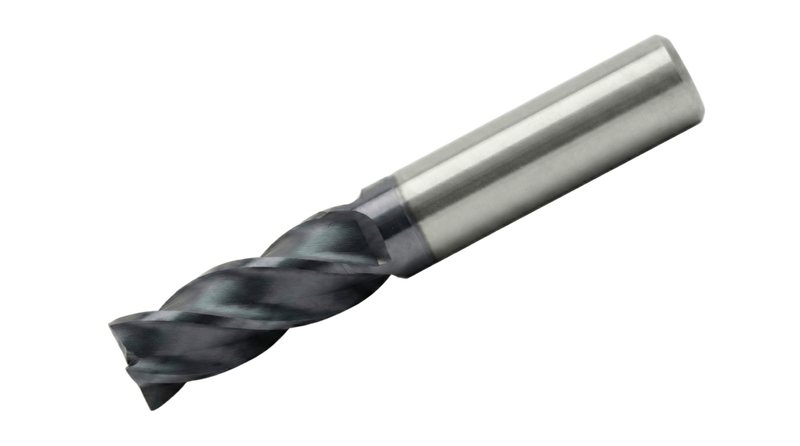

Outil rond avec diamètre de coupe de 5,56 mm, chanfrein d'angle de 45°, profondeur de coupe maximale de 15,875 mm et longueur totale de 63,5 mm. DCON MS 6,35 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec une teneur en chrome ≥ 11 %), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fontes (alliages de fer et de carbone avec une teneur en carbone > 2 %).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9547/32
GradeTiAlN
Product Number8962011
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.625"
Depth of Cut Max — mm (APMX)15.875 mm
Dimensions
Cutting Diameter — in (DC)0.219"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio11xD
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962011
EAN3603607424032
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9547/32 — 3D Model STP Download
S9547/32 — 2D Model DXF Download
S9547/32 — Line Drawing PDF Download
