S9549/16
S9549/16
S9549/16
S9549/16

S9549/16

UGC DOR8962013
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$149.06 CAD - $149.06 CAD
$149.06 CAD
$149.06 CAD - $149.06 CAD
$149.06 CAD

Vendu en lots de : 1

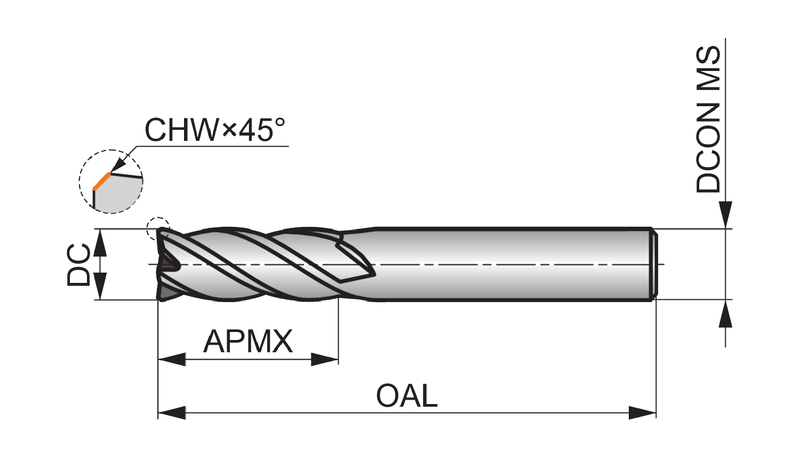

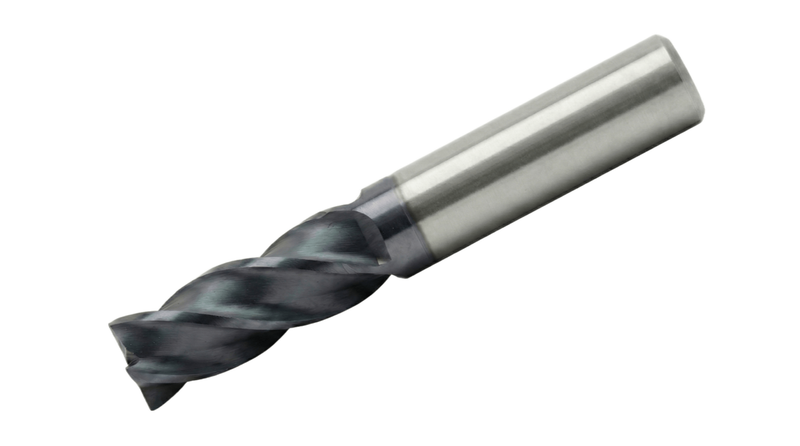

Outil rond avec un diamètre de coupe de 14,29 mm, chanfrein d'angle de 45°, profondeur de coupe maximale de 31,75 mm et une longueur totale de 88,9 mm. Diamètre de raccordement d'attachement de 14,29 mm avec une queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec une teneur en chrome ≥ 11%), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fontes (pièces moulées en fer et alliages de carbone avec une teneur en carbone > 2%).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9549/16
GradeTiAlN
Product Number8962013
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)1.25"
Depth of Cut Max — mm (APMX)31.75 mm
Dimensions
Cutting Diameter — in (DC)0.563"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.563"
Connection Dia. — mm (DCON)14.29 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962013
EAN3603607424056
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9549/16 — 3D Model STP Download
S9549/16 — 2D Model DXF Download
S9549/16 — Line Drawing PDF Download
