UGC DOR8962034
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.46 CAD - $46.46 CAD
$46.46 CAD
$46.46 CAD - $46.46 CAD
$46.46 CAD

Vendu en lots de : 1

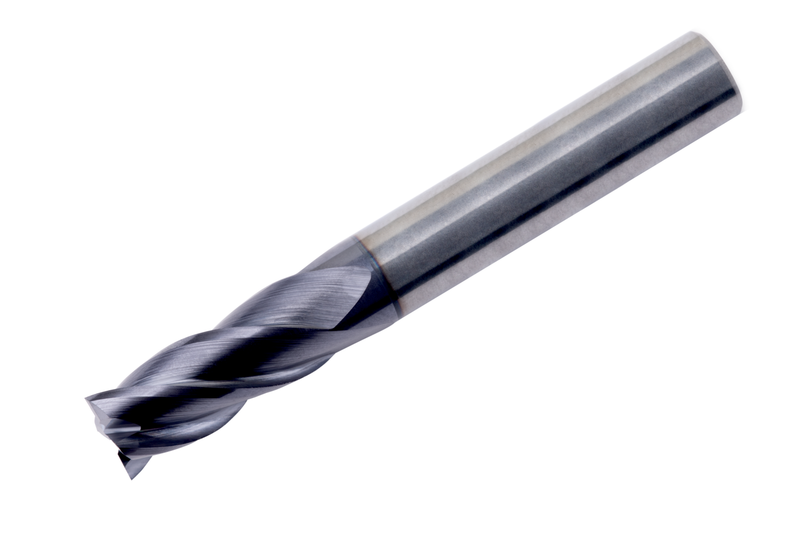

Outil rond d'un diamètre de coupe de 6,35 mm, d'une profondeur de coupe maximale de 19,05 mm et d'une longueur totale de 63,5 mm. DCON MS 6,35 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (pièces moulées en fer et alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9641/4
GradeTiAlN
Product Number8962034
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.75"
Depth of Cut Max — mm (APMX)19.05 mm

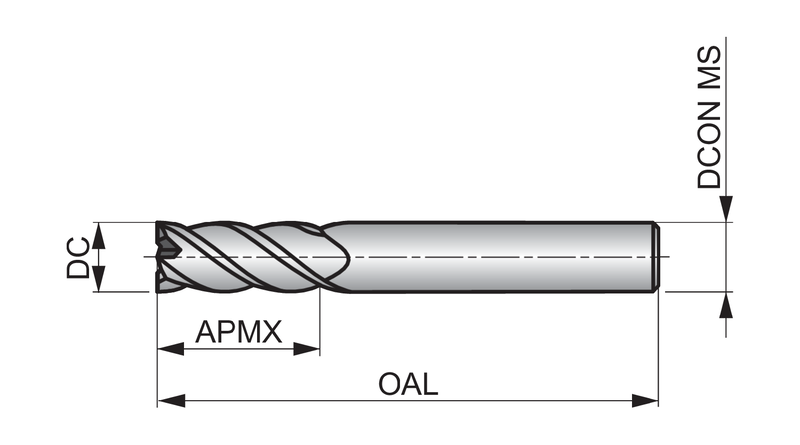

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio10x
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962034
EAN3603607424261
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9641/4 — 3D Model STP Download
S9641/4 — 2D Model DXF Download
S9641/4 — Line Drawing PDF Download
