UGC DOR8961718
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.24 CAD - $33.24 CAD
$33.24 CAD
$33.24 CAD - $33.24 CAD
$33.24 CAD

Vendu en lots de : 1

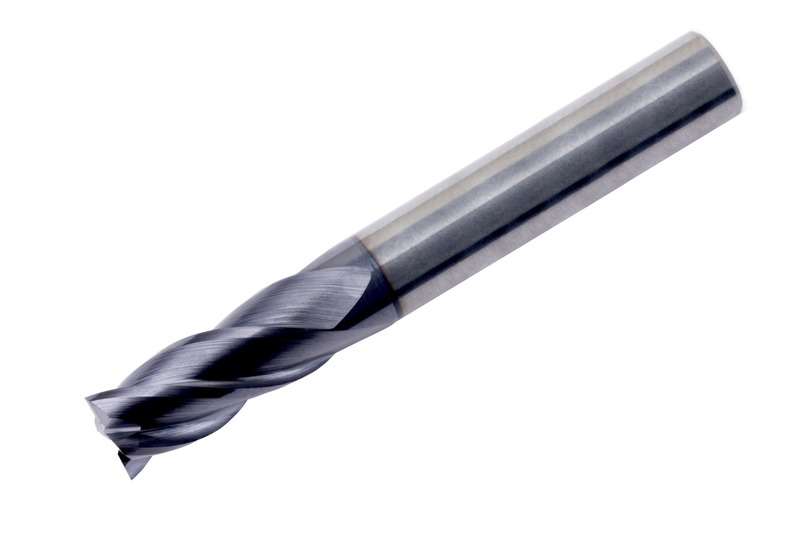

Outil rond avec diamètre de coupe de 2 mm, profondeur de coupe maximale de 6 mm et longueur totale de 38 mm. Diamètre de raccordement d'outil de 3 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10 % et une dureté de < 45 HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9642.0
GradeTiAlN
Product Number8961718
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm

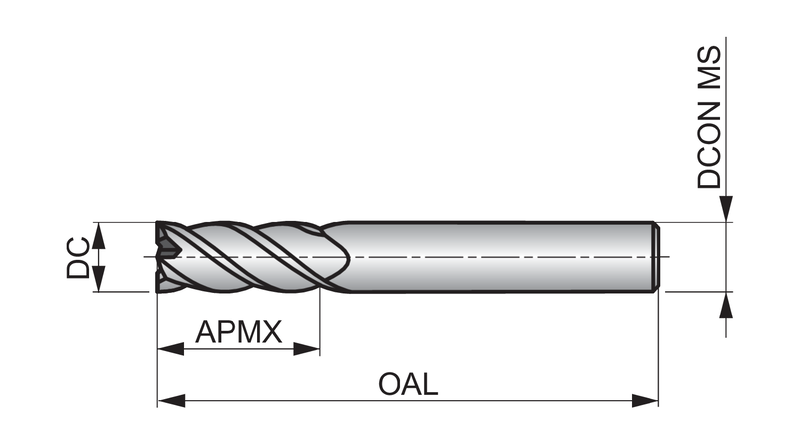

Dimensions
Cutting Diameter — in (DC)0.079"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.496"
Overall Length — mm (OAL)38.0 mm
Length × Diameter Ratio19xD
Connection Dia. — in (DCON)0.118"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961718
EAN3603607422908
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9642.0 — 3D Model STP Download
S9642.0 — 2D Model DXF Download
S9642.0 — Line Drawing PDF Download
