UGC DOR8961900
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.24 CAD - $33.24 CAD
$33.24 CAD
$33.24 CAD - $33.24 CAD
$33.24 CAD

Vendu en lots de : 1

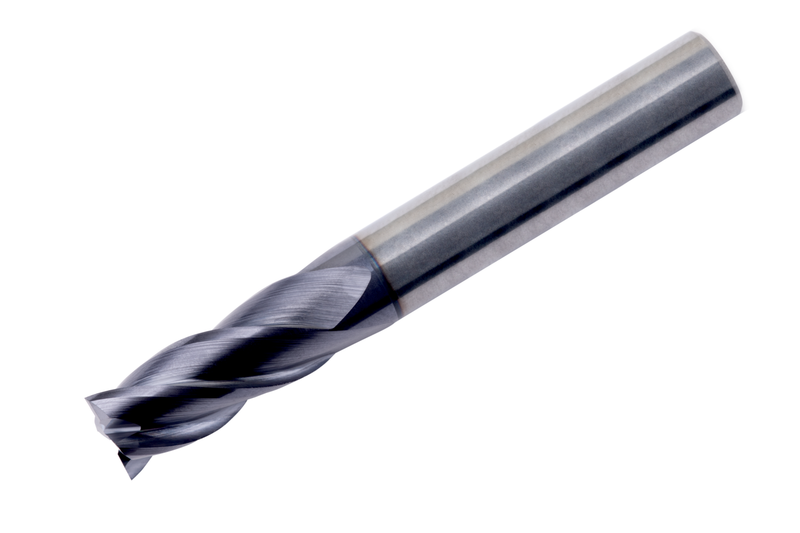

Outil rond d'un diamètre de coupe de 3 mm, d'une profondeur de coupe maximale de 12 mm et d'une longueur totale de 38 mm. DCON MS 3 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistant à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers alliés avec ≤ 10 % d'éléments d'alliage et une dureté de < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9643.0
GradeTiAlN
Product Number8961900
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm

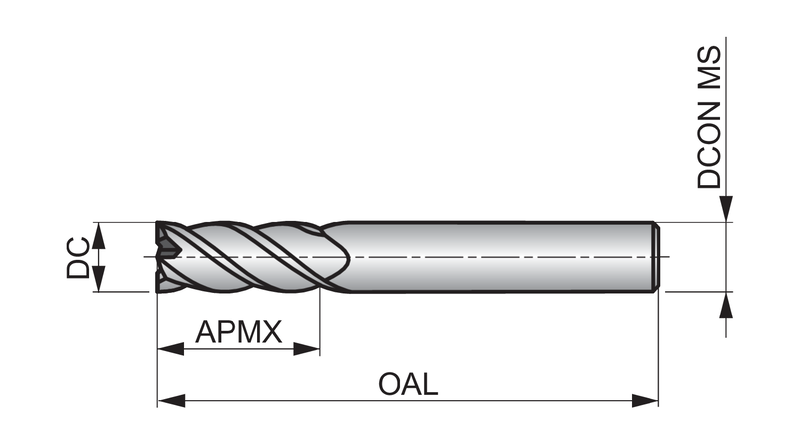

Dimensions
Cutting Diameter — in (DC)0.118"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.496"
Overall Length — mm (OAL)38.0 mm
Length × Diameter Ratio13xJ
Connection Dia. — in (DCON)0.118"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961900
EAN3603607422922
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9643.0 — 3D Model STP Download
S9643.0 — 2D Model DXF Download
S9643.0 — Line Drawing PDF Download
