UGC DOR8962036
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.01 CAD - $41.01 CAD
$41.01 CAD
$41.01 CAD - $41.01 CAD
$41.01 CAD

Vendu en lots de : 1

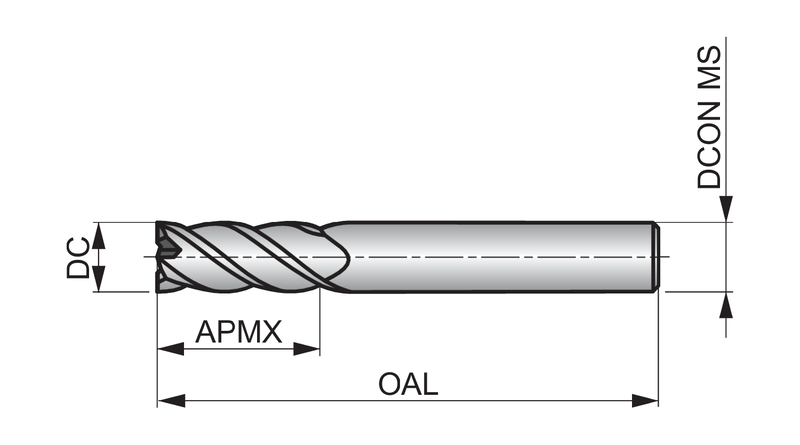

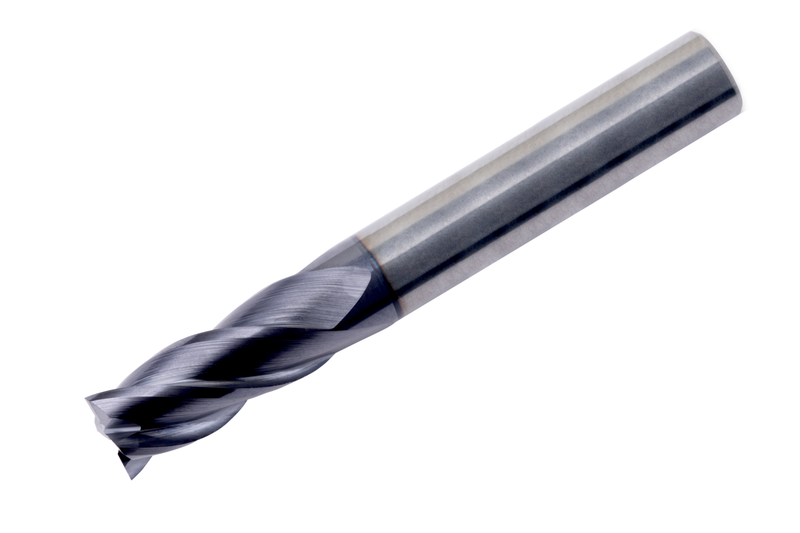

Outil rond avec un diamètre de coupe de 4,76 mm, une profondeur de coupe maximale de 15,875 mm et une longueur totale de 50,8 mm. DCON MS 4,76 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9643/16
GradeTiAlN
Product Number8962036
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.625"
Depth of Cut Max — mm (APMX)15.875 mm
Dimensions
Cutting Diameter — in (DC)0.188"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio11xD
Connection Dia. — in (DCON)0.188"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962036
EAN3603607424285
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9643/16 — 3D Model STP Download
S9643/16 — 2D Model DXF Download
S9643/16 — Line Drawing PDF Download
