UGC DOR8962038
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.29 CAD - $301.29 CAD
$301.29 CAD
$301.29 CAD - $301.29 CAD
$301.29 CAD

Vendu en lots de : 1

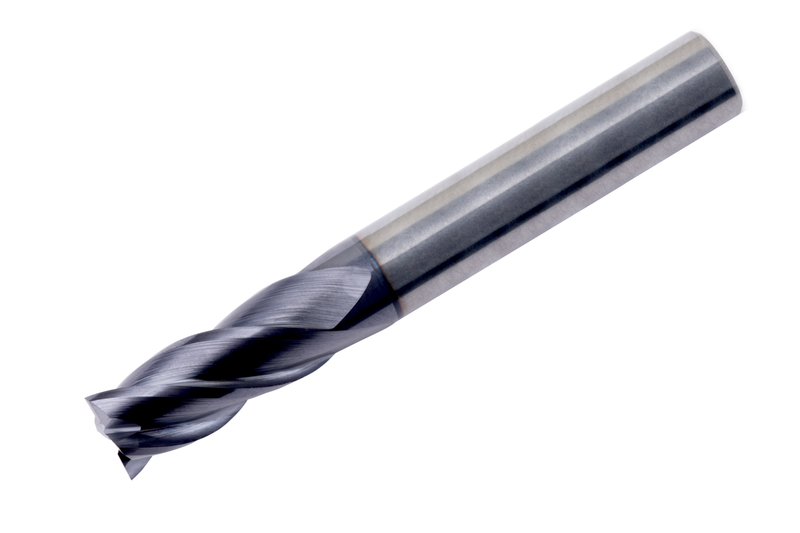

Outil rond avec diamètre de coupe 19,05 mm, profondeur de coupe maximale 38,1 mm et longueur totale 101,6 mm. Diamètre de raccordement 19,05 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11% de chrome), P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10% et dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9643/4
GradeTiAlN
Product Number8962038
Product FamilyS964

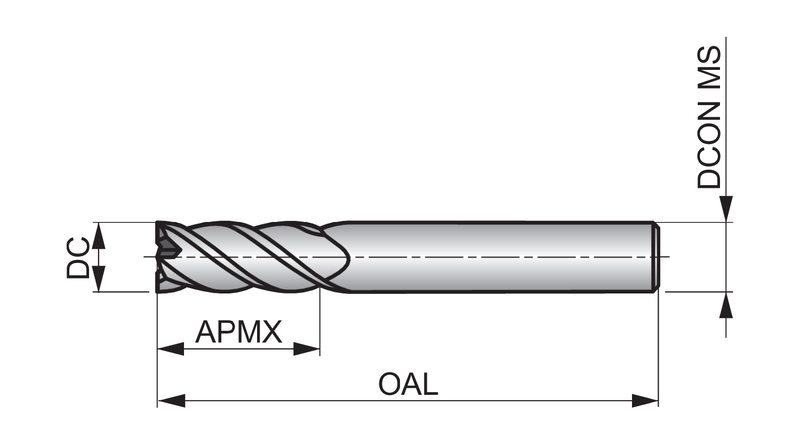

Insert Geometry
Depth of Cut Max — in (APMX)1.5"
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Length × Diameter Ratio5xD
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962038
EAN3603607424308
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9643/4 — 3D Model STP Download
S9643/4 — 2D Model DXF Download
S9643/4 — Line Drawing PDF Download
