UGC DOR8962039
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.63 CAD - $85.63 CAD
$85.63 CAD
$85.63 CAD - $85.63 CAD
$85.63 CAD

Vendu en lots de : 1

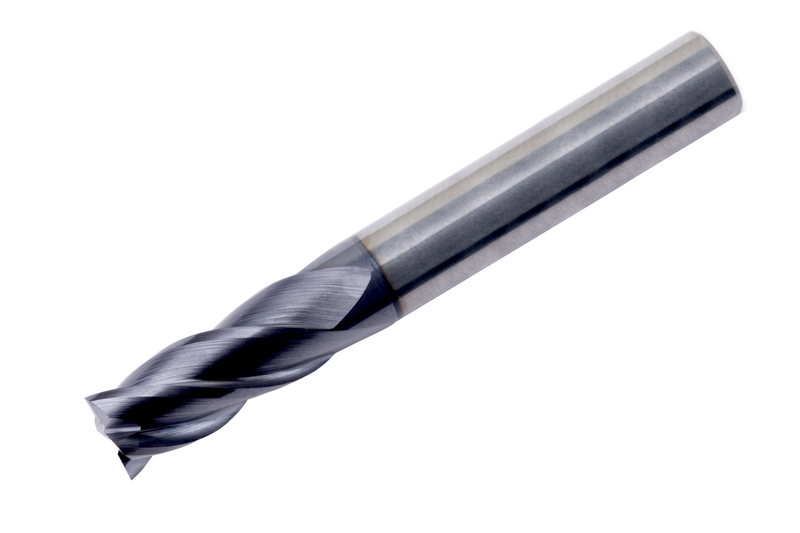

Outil rond avec diamètre de coupe de 9,53 mm, profondeur de coupe maximale de 22,225 mm et LHT de 63,5 mm. DCON MS 9,53 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec une teneur en carbone > 2 %).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9643/8
GradeTiAlN
Product Number8962039
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.875"
Depth of Cut Max — mm (APMX)22.225 mm

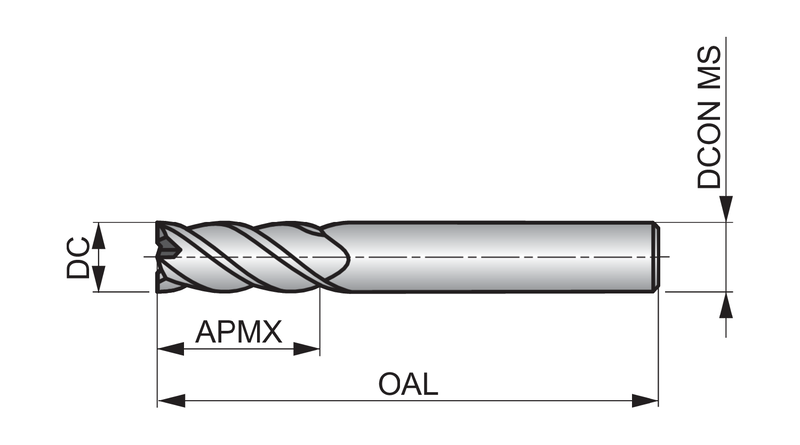

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962039
EAN3603607424315
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9643/8 — 3D Model STP Download
S9643/8 — 2D Model DXF Download
S9643/8 — Line Drawing PDF Download
