UGC DOR8961901
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.21 CAD - $36.21 CAD
$36.21 CAD
$36.21 CAD - $36.21 CAD
$36.21 CAD

Vendu en lots de : 1

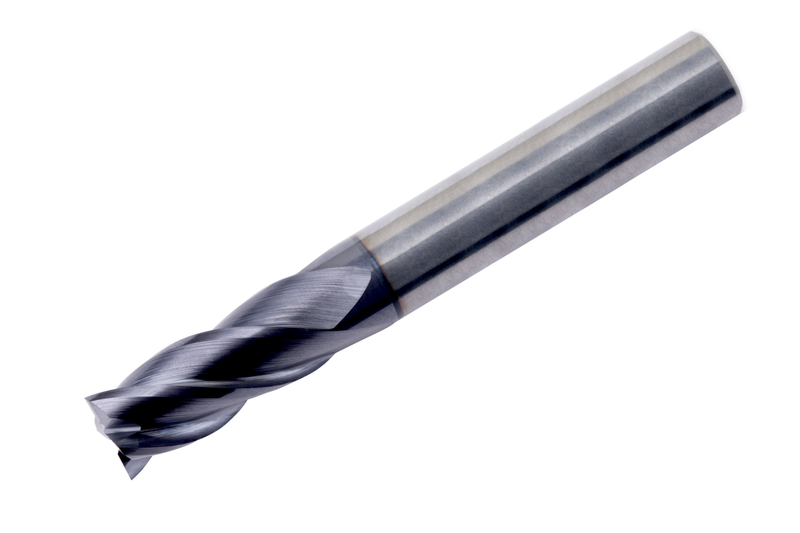

Outil rond avec diamètre de coupe de 4 mm, profondeur de coupe maximale de 14 mm et longueur totale de 50 mm. DCON MS 4 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec ≥ 11% de chrome), P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9644.0
GradeTiAlN
Product Number8961901
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm

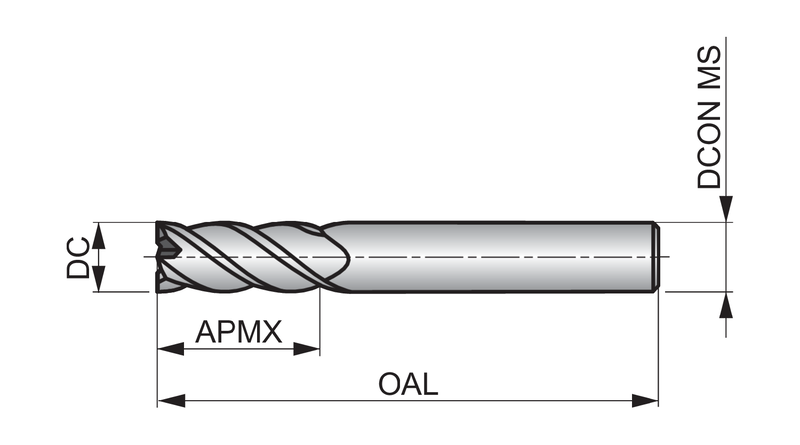

Dimensions
Cutting Diameter — in (DC)0.157"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio13xD
Connection Dia. — in (DCON)0.157"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961901
EAN3603607422939
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9644.0 — 3D Model STP Download
S9644.0 — 2D Model DXF Download
S9644.0 — Line Drawing PDF Download
