UGC DOR8961902
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.94 CAD - $36.94 CAD
$36.94 CAD
$36.94 CAD - $36.94 CAD
$36.94 CAD

Vendu en lots de : 1

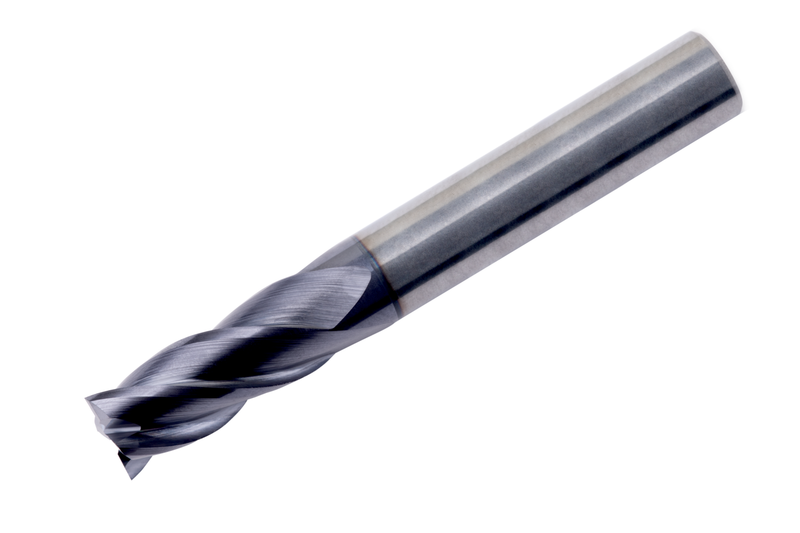

Outil rond avec diamètre de coupe de 5 mm, profondeur de coupe maximale de 16 mm et longueur totale de 50 mm. Diamètre de la queue 5 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Aciers et aciers moulés (aciers avec teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fontes (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9645.0
GradeTiAlN
Product Number8961902
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm

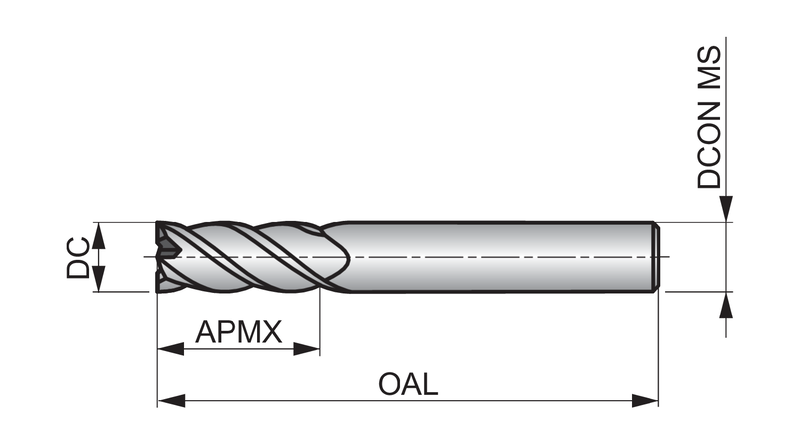

Dimensions
Cutting Diameter — in (DC)0.197"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio10 fois plus rapide
Connection Dia. — in (DCON)0.197"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961902
EAN3603607422946
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9645.0 — 3D Model STP Download
S9645.0 — 2D Model DXF Download
S9645.0 — Line Drawing PDF Download
