UGC DOR8961906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.04 CAD - $84.04 CAD
$84.04 CAD
$84.04 CAD - $84.04 CAD
$84.04 CAD

Vendu en lots de : 1

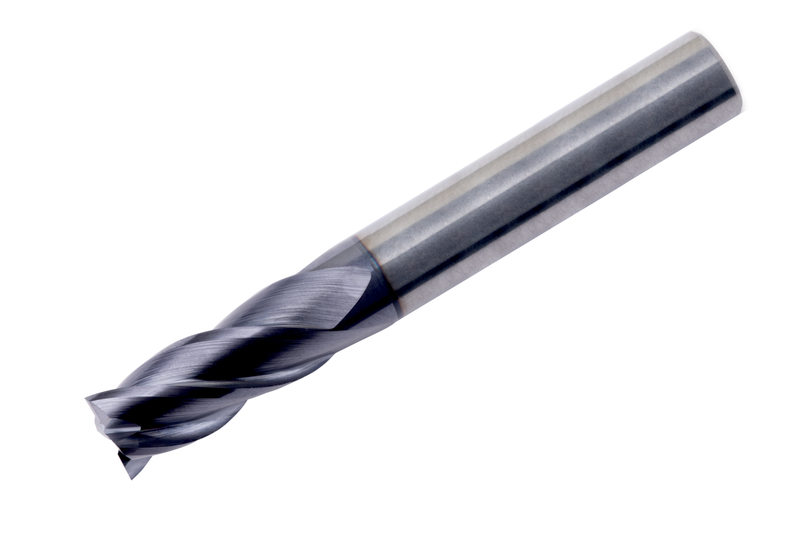

Outil rond avec diamètre de coupe de 9 mm, profondeur de coupe maximale de 21 mm et longueur totale de 72 mm. DCON MS 10 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11% de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10% et une dureté de < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9649.0
GradeTiAlN
Product Number8961906
Product FamilyS964
Insert Geometry

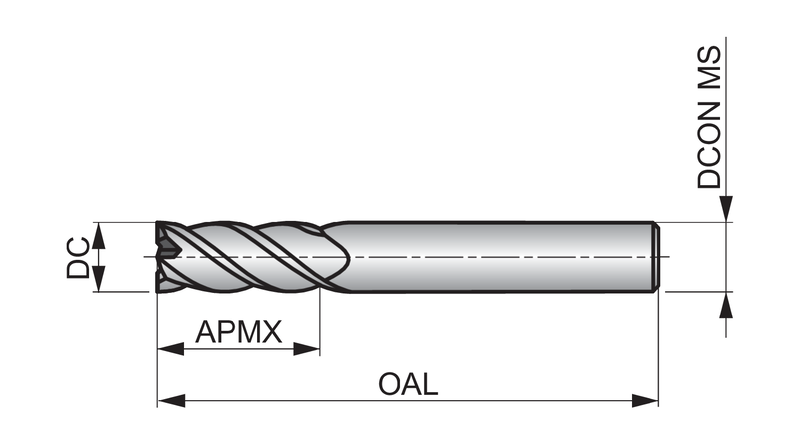

Depth of Cut Max — in (APMX)0.827"
Depth of Cut Max — mm (APMX)21.0 mm
Dimensions
Cutting Diameter — in (DC)0.354"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.835"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961906
EAN3603607422984
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9649.0 — 3D Model STP Download
S9649.0 — 2D Model DXF Download
S9649.0 — Line Drawing PDF Download
