S9649/16
S9649/16
S9649/16
S9649/16

S9649/16

UGC DOR8962046
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$149.06 CAD - $149.06 CAD
$149.06 CAD
$149.06 CAD - $149.06 CAD
$149.06 CAD

Vendu en lots de : 1

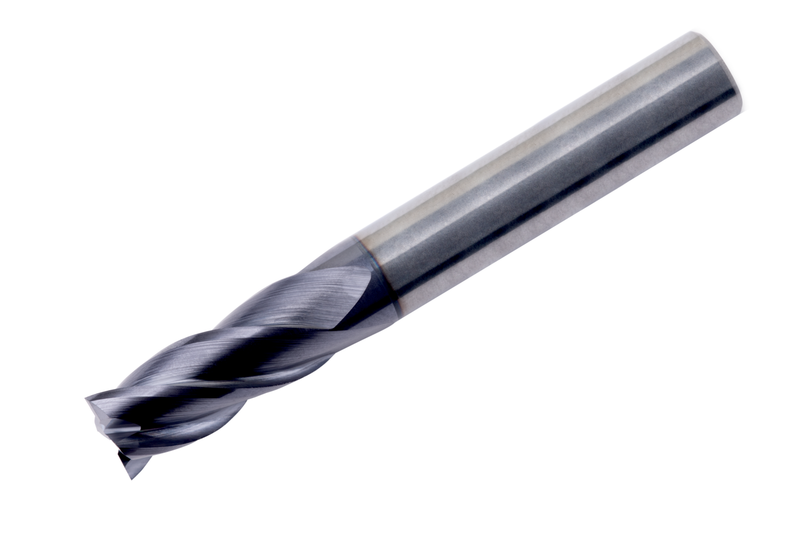

Outil rond avec diamètre de coupe 14,29 mm, profondeur de coupe maximale 31,75 mm et longueur totale 88,9 mm. DCON MS 14,29 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11% de chrome), P - Acier et acier moulé (aciers alliés ≤ 10% et dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9649/16
GradeTiAlN
Product Number8962046
Product FamilyS964
Insert Geometry
Depth of Cut Max — in (APMX)1.25"
Depth of Cut Max — mm (APMX)31.75 mm

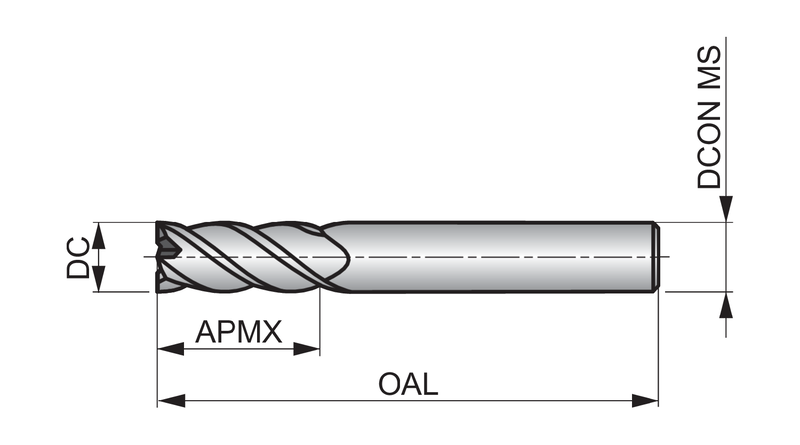

Dimensions
Cutting Diameter — in (DC)0.563"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.563"
Connection Dia. — mm (DCON)14.29 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962046
EAN3603607424384
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9649/16 — 3D Model STP Download
S9649/16 — 2D Model DXF Download
S9649/16 — Line Drawing PDF Download
