S9661/2
S9661/2
S9661/2
S9661/2

S9661/2

UGC DOR8962049
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.40 CAD - $118.40 CAD
$118.40 CAD
$118.40 CAD - $118.40 CAD
$118.40 CAD

Vendu en lots de : 1

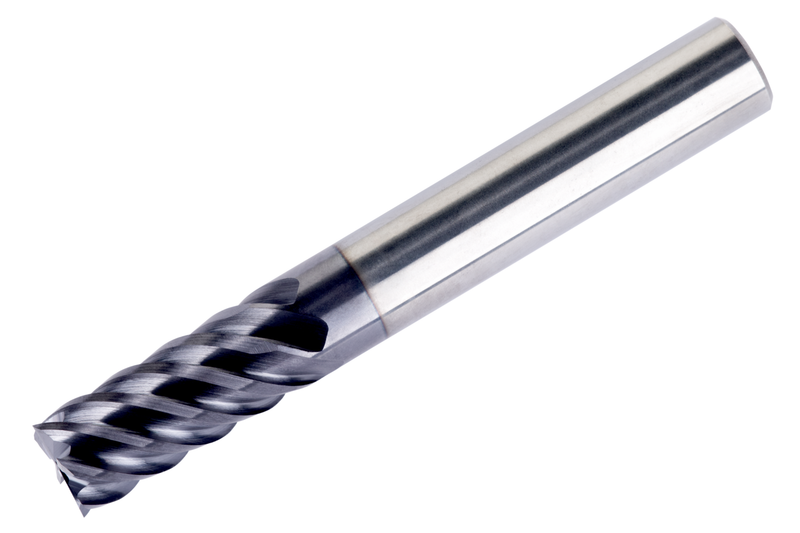

Outil rond avec diamètre de coupe 12,7 mm, profondeur de coupe maximale 25,4 mm et longueur totale 76,2 mm. DCON MS 12,7 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10 % et une dureté de < 45HRC), K - Fontes (alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9661/2
GradeTiAlN
Product Number8962049
Product FamilyS966
Insert Geometry
Depth of Cut Max — in (APMX)1.0"
Depth of Cut Max — mm (APMX)25.4 mm

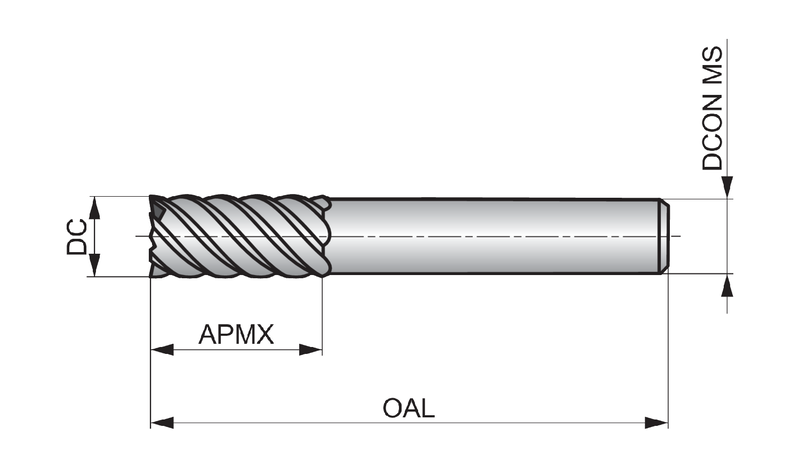

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962049
EAN3603607424414
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9661/2 — 3D Model STP Download
S9661/2 — 2D Model DXF Download
S9661/2 — Line Drawing PDF Download
