S96611/16
S96611/16
S96611/16
S96611/16

S96611/16

UGC DOR8962052
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$250.54 CAD - $250.54 CAD
$250.54 CAD
$250.54 CAD - $250.54 CAD
$250.54 CAD

Vendu en lots de : 1

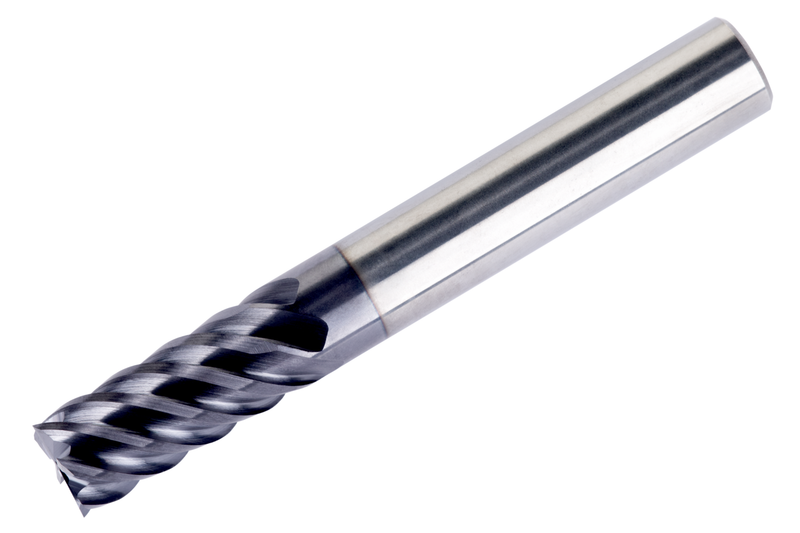

Outil rond avec diamètre de coupe de 17,46 mm, profondeur de coupe maximale de 38,1 mm et longueur totale de 101,6 mm. DCON MS 19,05 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45 HRC), K - Fonte (moulages de fer et d'alliages de carbone avec une teneur en carbone > 2 %).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S96611/16
GradeTiAlN
Product Number8962052
Product FamilyS966
Insert Geometry
Depth of Cut Max — in (APMX)1.5"
Depth of Cut Max — mm (APMX)38.1 mm

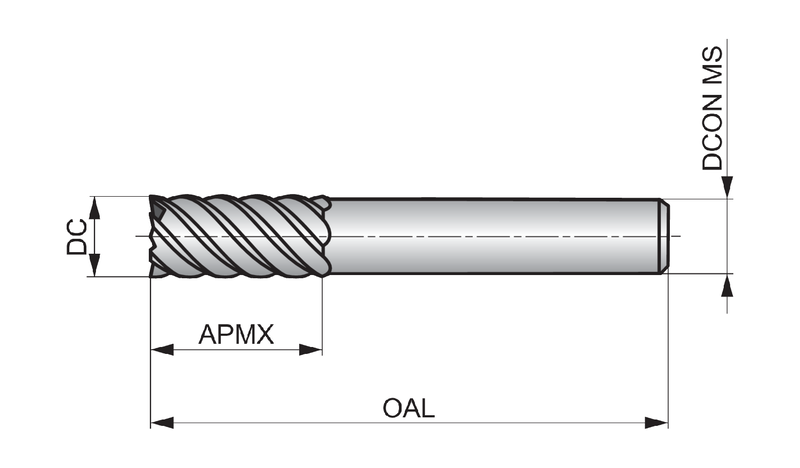

Dimensions
Cutting Diameter — in (DC)0.688"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962052
EAN3603607424445
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S96611/16 — 3D Model STP Download
S96611/16 — 2D Model DXF Download
S96611/16 — Line Drawing PDF Download
