UGC DOR8961917
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.40 CAD - $118.40 CAD
$118.40 CAD
$118.40 CAD - $118.40 CAD
$118.40 CAD

Vendu en lots de : 1

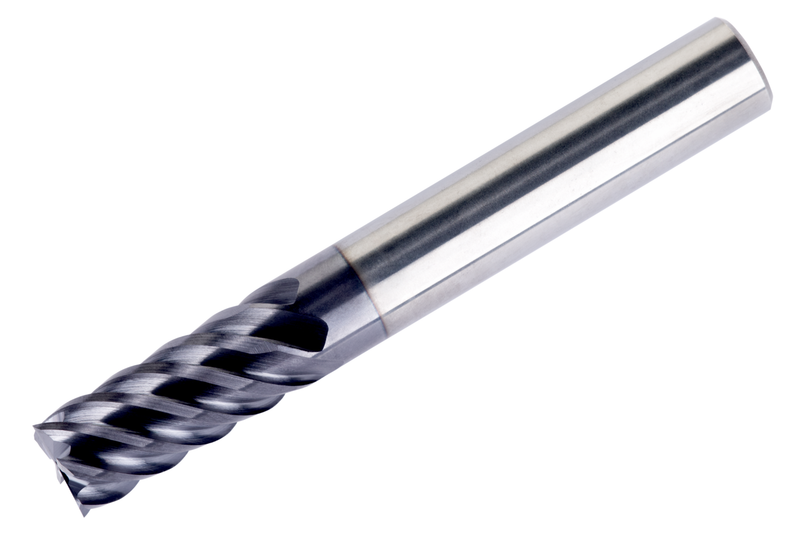

Outil rond avec diamètre de coupe 12 mm, profondeur de coupe maximale 26 mm et longueur totale 83 mm. DCON MS 12 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec une teneur en carbone > 2 %).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S96612.0
GradeTiAlN
Product Number8961917
Product FamilyS966
Insert Geometry
Depth of Cut Max — in (APMX)1.024"
Depth of Cut Max — mm (APMX)26.0 mm

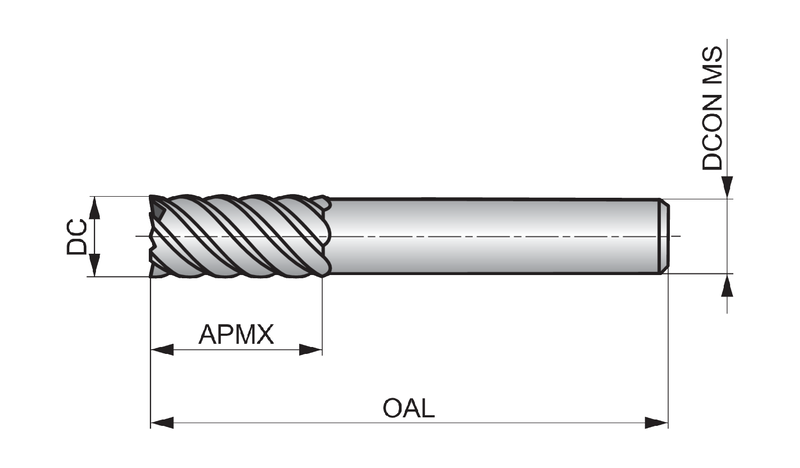

Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.268"
Overall Length — mm (OAL)83.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961917
EAN3603607423097
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S96612.0 — 3D Model STP Download
S96612.0 — 2D Model DXF Download
S96612.0 — Line Drawing PDF Download
