S9663/4
S9663/4
S9663/4
S9663/4

S9663/4

UGC DOR8962055
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.29 CAD - $301.29 CAD
$301.29 CAD
$301.29 CAD - $301.29 CAD
$301.29 CAD

Vendu en lots de : 1

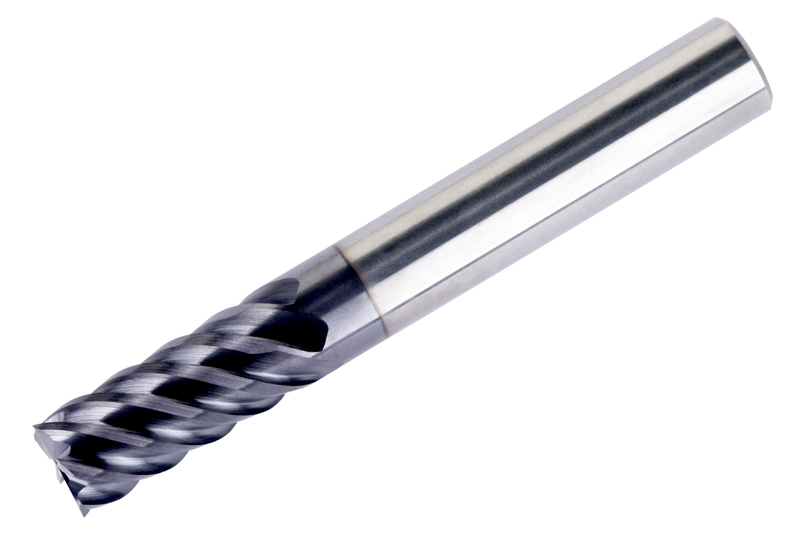

Outil rond avec diamètre de coupe de 19,05 mm, profondeur de coupe maximale de 38,1 mm et longueur totale de 101,6 mm. DCON MS de 19,05 mm avec queue cylindrique. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11%), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec une teneur en carbone > 2%).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9663/4
GradeTiAlN
Product Number8962055
Product FamilyS966
Insert Geometry
Depth of Cut Max — in (APMX)1.5"
Depth of Cut Max — mm (APMX)38.1 mm

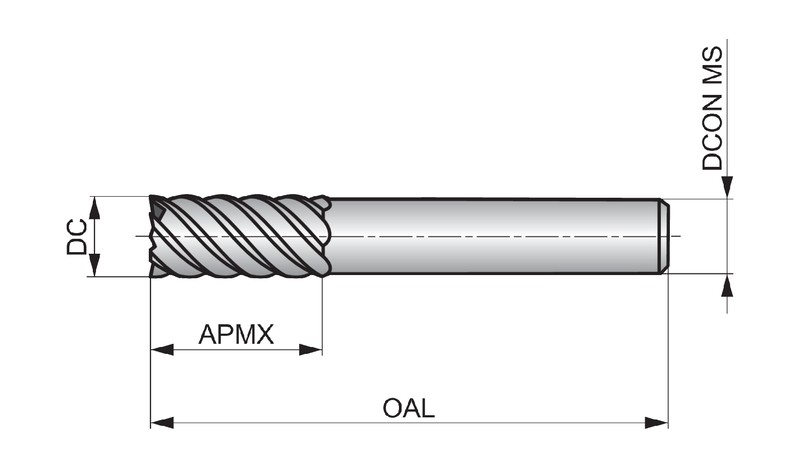

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Length × Diameter Ratio5xD
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number8962055
EAN3603607424476
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9663/4 — 3D Model STP Download
S9663/4 — 2D Model DXF Download
S9663/4 — Line Drawing PDF Download
