S97210.0XR2.0
S97210.0XR2.0
S97210.0XR2.0
S97210.0XR2.0

S97210.0XR2.0

UGC DOR8961931
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.11 CAD - $76.11 CAD
$76.11 CAD
$76.11 CAD - $76.11 CAD
$76.11 CAD

Vendu en lots de : 1

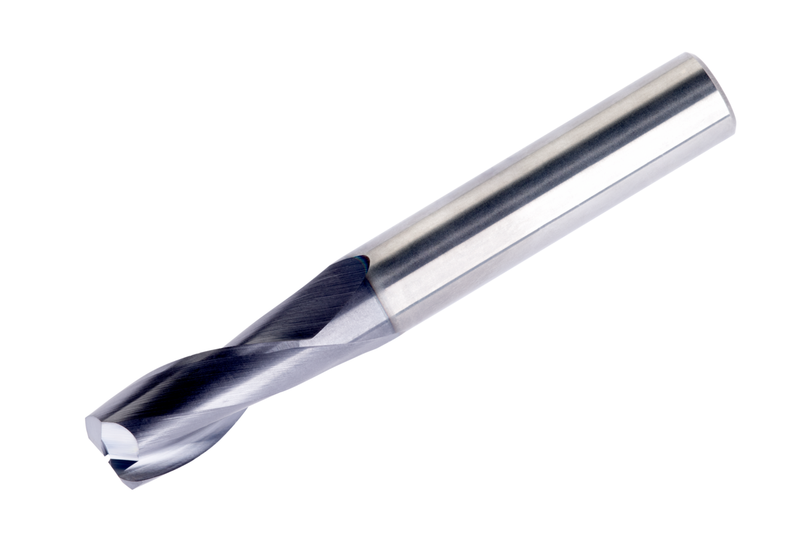

Outil rond avec un diamètre de coupe de 10 mm, une profondeur de coupe maximale de 22 mm et une longueur totale de 72 mm. DCON MS 10 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistant à la corrosion avec une teneur en chrome ≥ 11%), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec une teneur en carbone > 2%).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S97210.0XR2.0
GradeTiAlN
Product Number8961931
Product FamilyS972

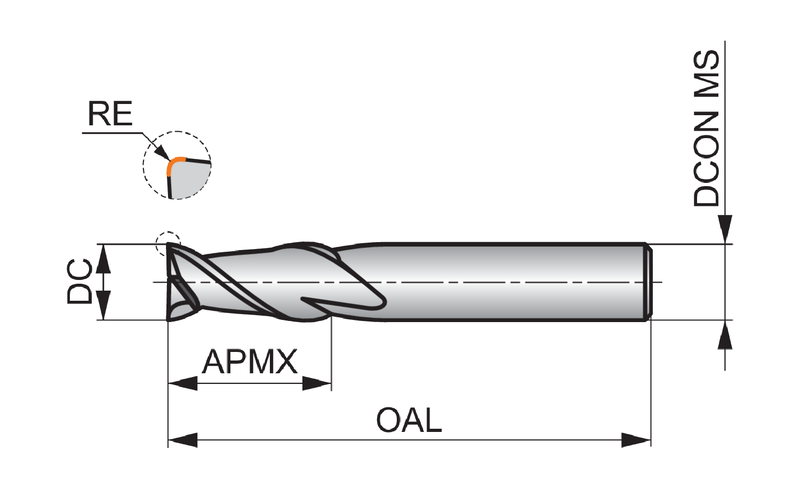

Insert Geometry
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.866"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.835"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961931
EAN3603607423233
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S97210.0XR2.0 — 3D Model STP Download
S97210.0XR2.0 — 2D Model DXF Download
S97210.0XR2.0 — Line Drawing PDF Download
