UGC DOR8961934
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.19 CAD - $105.19 CAD
$105.19 CAD
$105.19 CAD - $105.19 CAD
$105.19 CAD

Vendu en lots de : 1

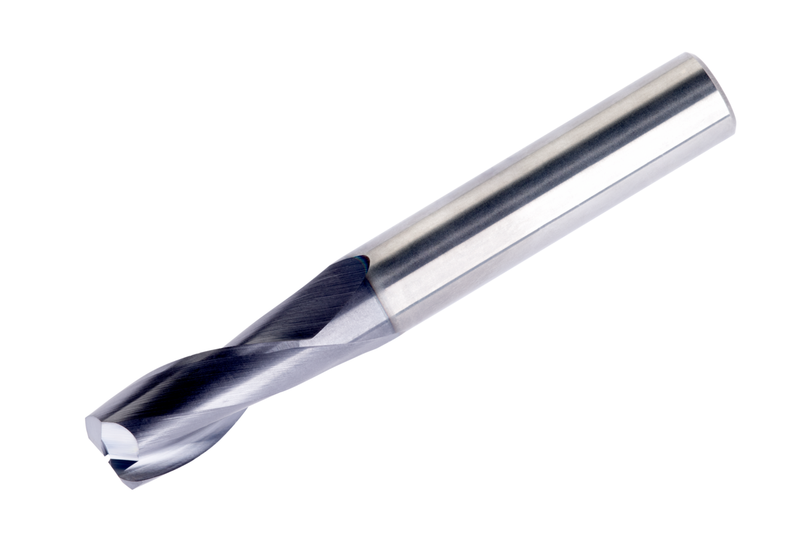

Outil rond avec un diamètre de coupe de 12 mm, une profondeur de coupe maximale de 25 mm et une longueur totale de 73 mm. Queue cylindrique DCON MS 12 mm DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers alliés avec ≤ 10 % d'alliage et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S97212.0XR3.0
GradeTiAlN
Product Number8961934
Product FamilyS972

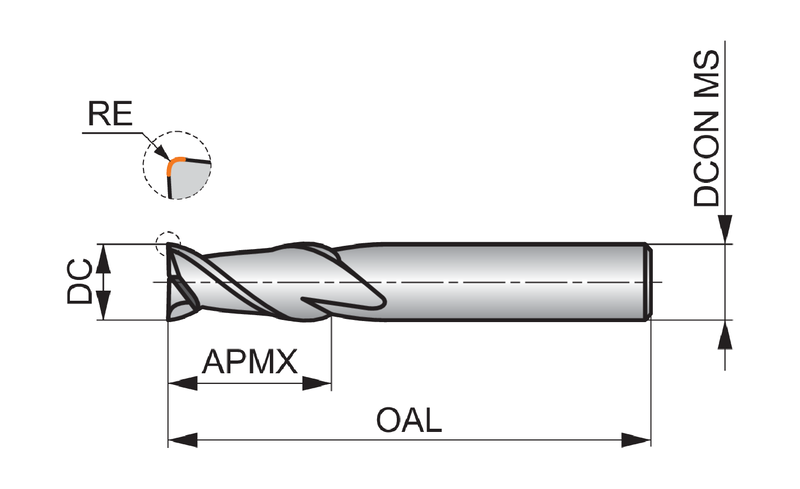

Insert Geometry
Corner Radius — in (RE)0.118"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.984"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961934
EAN3603607423264
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S97212.0XR3.0 — 3D Model STP Download
S97212.0XR3.0 — 2D Model DXF Download
S97212.0XR3.0 — Line Drawing PDF Download
