UGC DOR8961925
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.33 CAD - $41.33 CAD
$41.33 CAD
$41.33 CAD - $41.33 CAD
$41.33 CAD

Vendu en lots de : 1

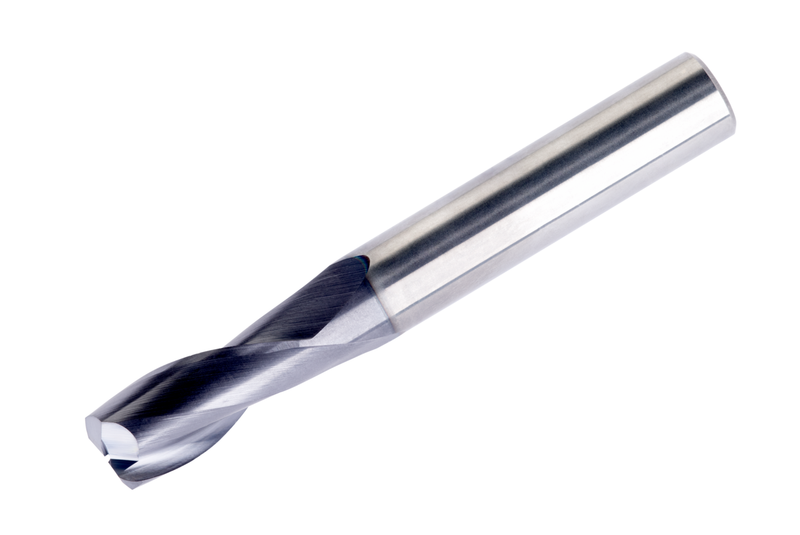

Outil rond avec diamètre de coupe de 6 mm, profondeur de coupe maximale de 19 mm et longueur totale de 57 mm. Diamètre de la queue 6 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fontes (pièces moulées en fer et alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9726.0XR0.5
GradeTiAlN
Product Number8961925
Product FamilyS972

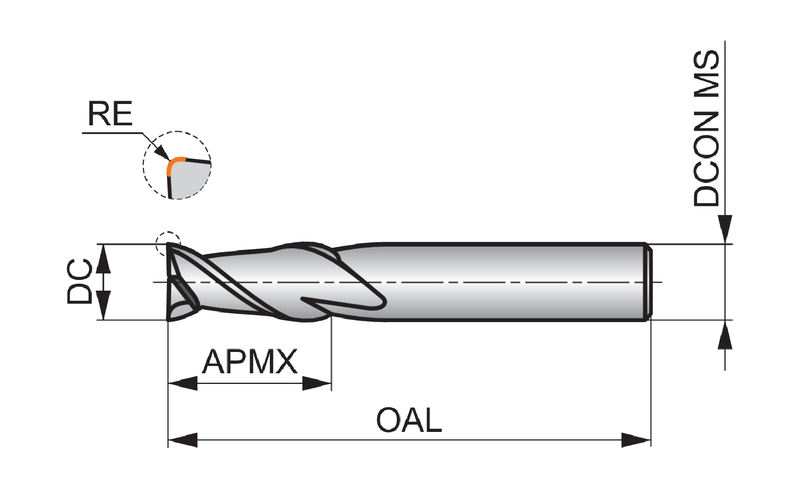

Insert Geometry
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.236"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.244"
Overall Length — mm (OAL)57.0 mm
Length × Diameter Ratio10xD
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961925
EAN3603607423172
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9726.0XR0.5 — 3D Model STP Download
S9726.0XR0.5 — 2D Model DXF Download
S9726.0XR0.5 — Line Drawing PDF Download
